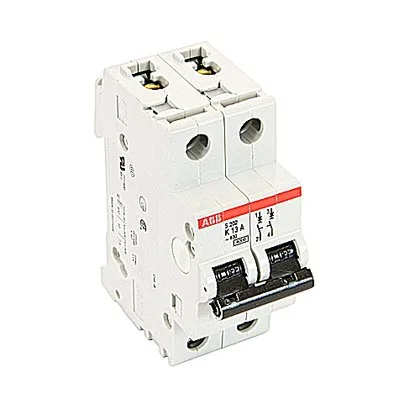

ABB S202-K13 — 2-Pole MCB (DIN Rail)

ABB S202-K13 MCB, 2-Pole K-Curve 13A, 277VAC, DIN Rail

MPNS202-K13

ABB S202-K13, 2-pole miniature circuit breaker, K-curve, 13 A, 277 VAC, 6 kA interrupting rating, DIN rail mount, UL1077.

$20.57Ref. price · indicative, final on quote
ABB S202-K13 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

S202-K13 — Specifications
ParameterValue
Amps13
TypeTrip Curve K
Poles2
MountingDIN Rail
Volts AC277
Breaking capacity6 kA

Product details

The ABB S202-K13 is a 2-pole miniature circuit breaker with a K-curve trip characteristic, rated 13 A at 277 VAC and a 6 kA interrupting capacity.

The closest functional peer is the S202M-C16 — same 2-pole DIN-rail footprint, same 277 VAC and 6 kA interrupting rating. The difference is trip curve and current: the S202M-C16 is a C-curve rated 16 A, while the S202-K13 is a K-curve at 13 A.

The S202-K13 carries a UL1077 listing and is rated for 277 VAC systems. It is designed for use in panelboards, control panels, and industrial equipment.

Frequently asked questions

Will the S202-K13 drop into a panel specified around the S202M-C16?

Yes, the S202-K13 shares the same 2-pole DIN-rail footprint and 277 VAC rating as the S202M-C16, so it physically fits without rewiring. However, the trip curve (K vs C) and ampacity (13 A vs 16 A) differ — verify the load's inrush and current requirements before substituting.

MPN
S202-K13
