ABB S202-Z2

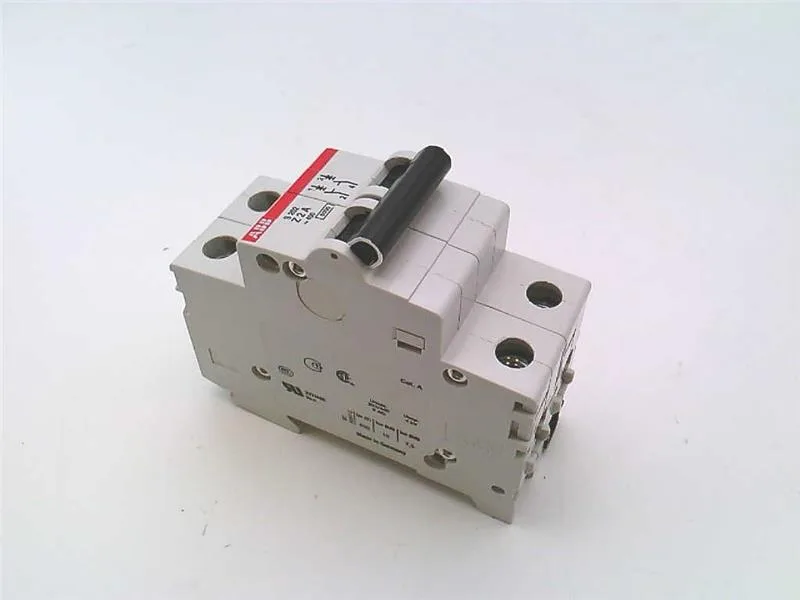

S202-Z2 Miniature Circuit Breaker, 2A, Trip Curve Z, 2 Pole

MPN S202-Z2

ABB S200 series miniature circuit breaker, S202-Z2, 2 A, Trip Curve Z, 2 poles, DIN rail mount, 277 VAC, 6 kA interrupting rating.

$20.32 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

S202-Z2 specifications
ParameterValue
Product typeTrip Curve Z
Current2 A
Breaking capacity6 kA
Poles2
MountingDIN Rail

Product details

The Z curve trips between 2x and 3x rated current — designed for semiconductor protection and sensitive electronic loads where standard C-curve breakers would allow too much through before opening. Mounts on standard DIN rail — snaps into the same footprint as any S200 family breaker, so panel layout stays the same regardless of curve selection.

DIN rail mount, 2-pole width — 36 mm on the rail, same as every S200 2-pole. Spring-cage terminals accept 0.5 to 25 mm² solid or stranded; strip length 12 mm. The Z-curve means no nuisance tripping on inrush from capacitive loads or small power supplies, but it also means this breaker opens faster than a C-curve on a sustained overload — so verify the connected load's short-duration peak doesn't exceed 6 A (3x rated).

MPN
S202-Z2
