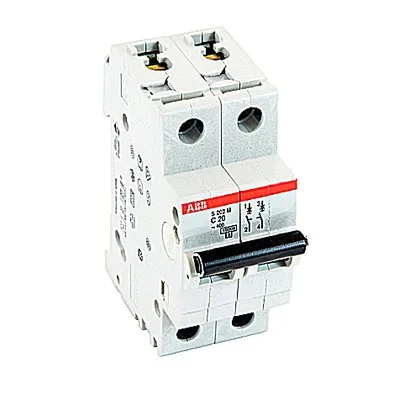

ABB S202M-C20 — 2-Pole MCB (DIN Rail)

S202M-C20 ABB S200M MCB, 2-Pole 20A Curve C, 6kA

MPNS202M-C20

ABB S200M series, S202M-C20 miniature circuit breaker, 2-pole, 20 A, Trip Curve C, 277 VAC / 125 VDC, 6 kA interrupting rating AC, DIN rail mount.

$30.96Ref. price · indicative, final on quote
ABB S202M-C20 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

S202M-C20 — Specifications
ParameterValue
Amps20
TypeTrip Curve C
Poles2
MountingDIN Rail
Volts AC277
Volts DC125
Breaking capacity6 kA
Interrupt rating DC10 kA

Product details

S202M-C20 — 20 A, Curve C, 2-Pole MCB for DIN-Rail Panels

Curve C means the magnetic trip threshold sits between 5× and 10× rated current — so at 20 A, the instantaneous trip point is 100 A to 200 A.

Interrupting Ratings and Voltage Range

Rated 6 kA interrupting capacity at 277 VAC and 10 kA at 125 VDC.

MPN
S202M-C20
