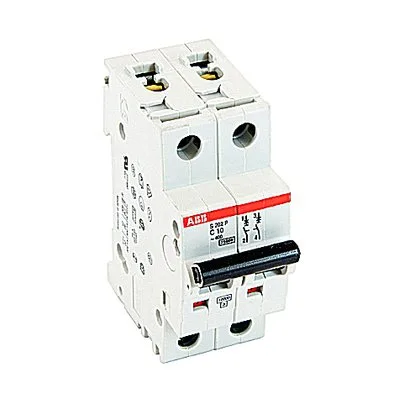

ABB S202P-C10, 2-pole miniature circuit breaker, 10 A, Trip Curve C, 277 VAC, 10 kA interrupting.
| Parameter | Value |
|---|---|
| Amps | 10 |
| Type | Trip Curve C |
| Poles | 2 |
| Mounting | DIN Rail |
| Volts AC | 277 |
| Breaking capacity | 10 kA |
The 10 kA interrupting rating covers most commercial distribution panel fault levels up to that SCCR — coordination with upstream devices should verify the let-through energy stays within the branch's wiring rating. DIN-rail mount snaps into standard 35 mm rail; two-module width leaves adjacent slots free for other breakers or accessories.
This part is sourced to order against an RFQ through independent distribution. Submit an inquiry for current availability and pricing.
Rated 10 A with Trip Curve C. Curve C trips at 5–10× rated current, typical for general-purpose loads like lighting and small motor circuits.
No — the S203-Z25 is a 3-pole, 25 A, Curve Z breaker on the same 277 VAC rail, so it occupies a different DIN footprint (3 modules vs 2) and carries a higher current rating. The S202P-C10 would not replace it without repopulating the busbar and rewiring the outgoing circuits.
