ABB S202P-K16

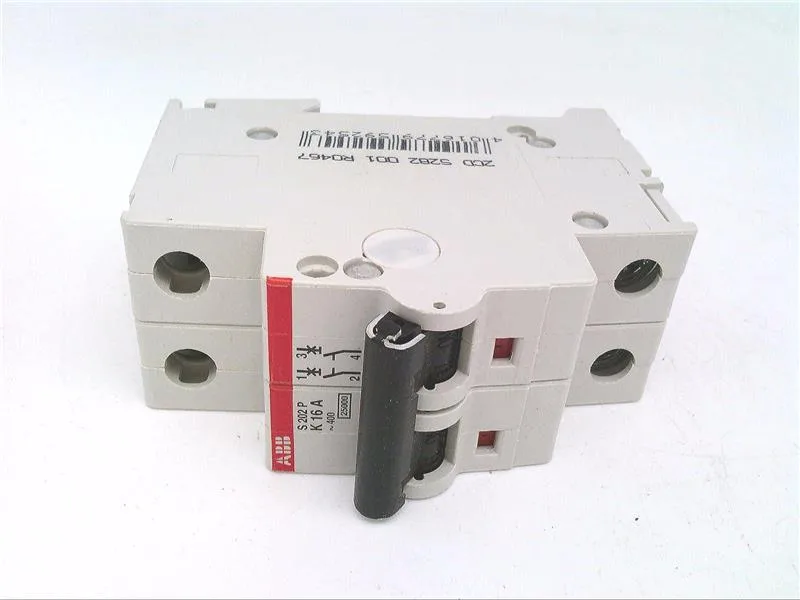

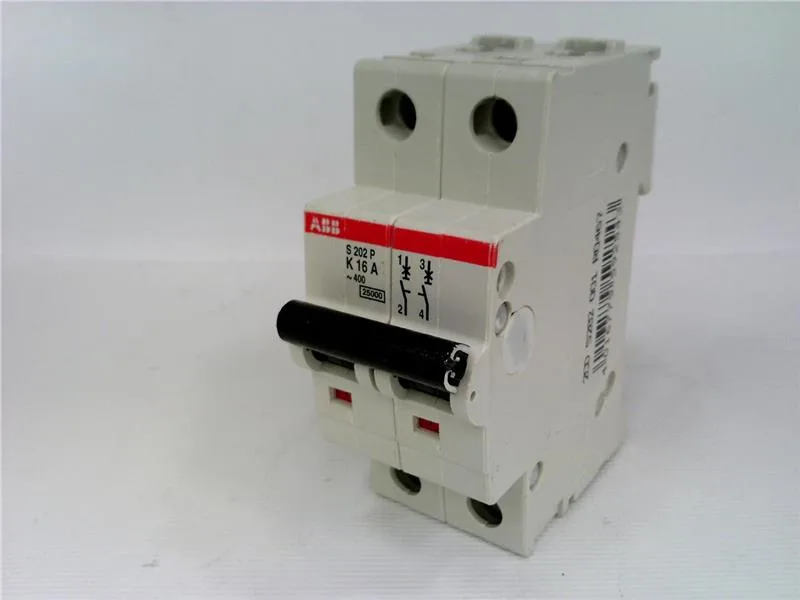

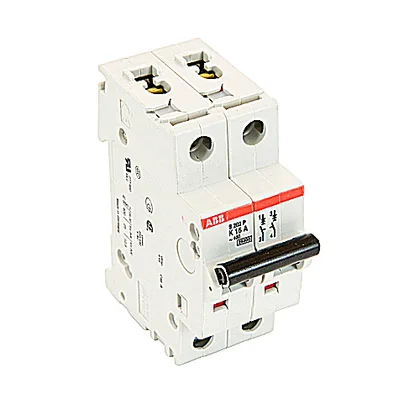

S202P-K16 ABB Mini Circuit Breaker, 1.6 A, Curve K, 2-Pole

MPN S202P-K16

ABB S202P-K16, 2-pole miniature circuit breaker, 1.6 A, Trip Curve K, 277 VAC, 10 kA interrupting rating, DIN rail mount.

$27.94 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

S202P-K16 specifications
ParameterValue
Product typeTrip Curve K
Current1.6 A
Breaking capacity10 kA
Poles2
MountingDIN Rail

Product details

The ABB S202P-K16 is a 2-pole miniature circuit breaker rated at 1.6 A with a Trip Curve K characteristic, designed for DIN-rail mounting in distribution boards and control panels. The 1.6 A rating sets the continuous current it carries without tripping; the K curve means it tolerates higher inrush currents than a B or C curve — typically 8–12× the rated current before the magnetic trip fires — making it a fit for inductive loads like small transformers, solenoid valves, or motor starters where the startup surge would nuisance-trip a standard curve. Rated at 277 VAC with a 10 kA interrupting capacity, this breaker safely clears a fault up to 10,000 A at that voltage without welding contacts or venting arc plasma into the enclosure.

Trip Curve K — where it belongs

Trip Curve K is the middle ground between the motor-protection Curve C (5–10× In) and the high-inrush Curve Z (2–3× In). It's specified for circuits with moderate inductive surges — think control transformers, relay coils, and small DC power supplies — where a Curve C might nuisance-trip on energization but a Curve D (10–14× In) would delay fault clearing too long for the downstream equipment. The 1.6 A rating on this 2-pole unit covers small branch circuits in automation panels where the load current is under 1.6 A steady-state but the inrush can spike to 12–19 A momentarily.
