ABB S202P-K25

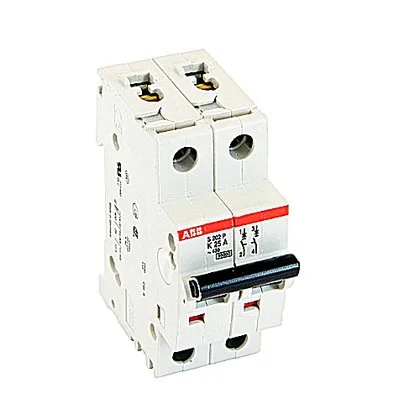

S202P-K25 Miniature Circuit Breaker 2P K-Curve 25A 277V

MPN S202P-K25

ABB S202P-K25, 2-pole miniature circuit breaker, K-curve, 25 A, 277 VAC, 10 kA interrupting capacity, DIN rail mount.

$91.44 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

S202P-K25 specifications
ParameterValue
Product typeTrip Curve K
Current25 A
Breaking capacity10 kA
Poles2
MountingDIN Rail

Product details

Integrator note — K-curve on a 2-pole 25 A frame

The ABB S202P-K25 is a 2-pole miniature circuit breaker rated 25 A with a K-curve trip characteristic, meaning it tolerates the inrush of motor and transformer loads without nuisance tripping — the magnetic trip threshold sits around 8–12× rated current, wider than a C-curve's 5–10×. At 277 VAC it delivers a 10 kA interrupting capacity, enough for most panelboard fault levels downstream of a 22 kA main. Snaps onto standard DIN rail; occupies two pole widths in the enclosure.

Selectivity and coordination

The K-curve on this 25 A breaker is the deciding factor for motor branch circuits and inductive loads — it holds through the 8–12× inrush region where a C-curve would trip. Compared to a C-curve sibling at the same 25 A frame, the S202P-K25 gives you wider headroom for starting currents on pumps, compressors, and small conveyors. The 10 kA SCCR at 277 VAC coordinates cleanly with a 22 kA main upstream, provided the let-through energy of the main does not exceed the breaker's rated short-circuit capacity.

Panel integration

DIN rail mount, 2-pole width. Strip length 8 mm. Occupies standard 36 mm per pole on the rail — plan fill factor accordingly in the enclosure layout.
