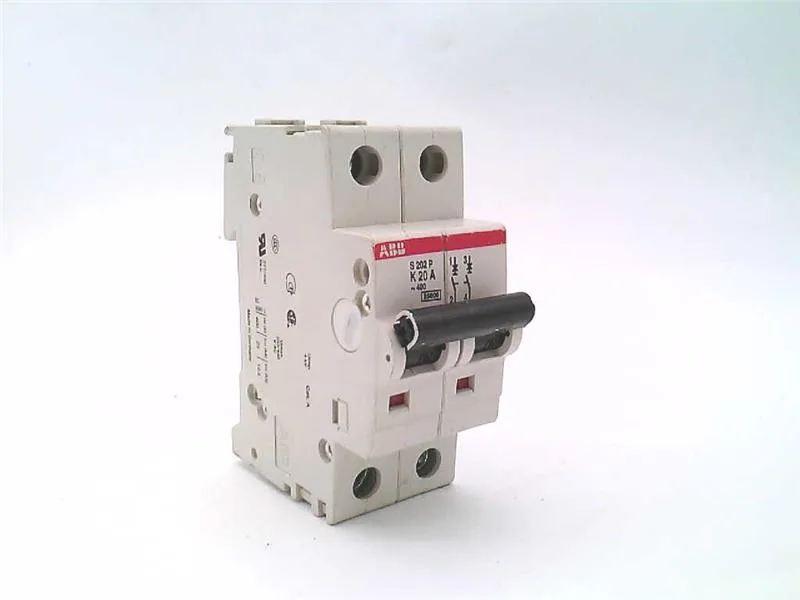

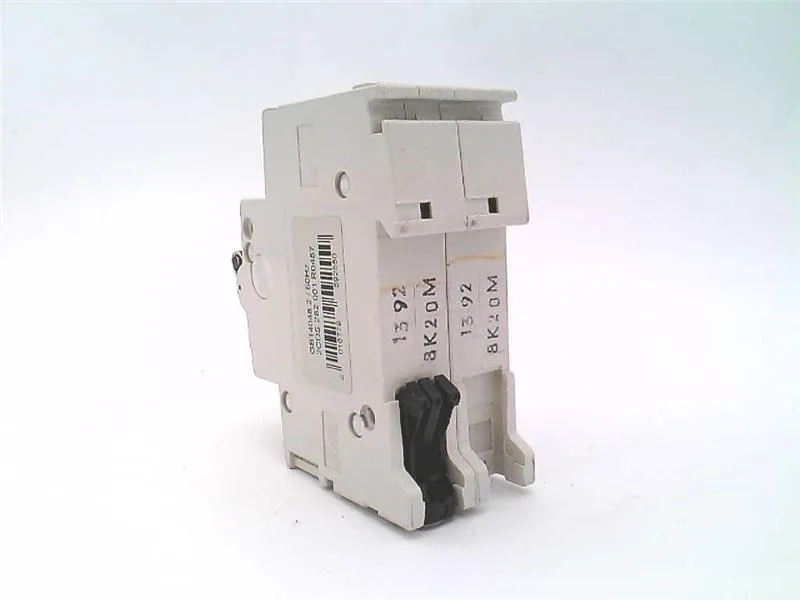

ABB S200 series miniature circuit breaker, S202P-K20, 2-pole, 20 A, Trip Curve C, 277 VAC, 10 kA interrupting rating, DIN rail mount.
| Parameter | Value |
|---|---|
| Amps | 20 |
| Type | Trip Curve C |
| Poles | 2 |
| Mounting | DIN Rail |
| Volts AC | 277 |
| Breaking capacity | 10 kA |
The 277 VAC rating aligns with 480Y/277 V three-phase wye systems — common in North American panelboards — so this breaker handles line-to-neutral faults on a 480 V service without cascading upstream. Two-pole switching means it opens both phases simultaneously, giving full disconnection for a 277 V single-phase load or a 240 V split-phase circuit.
10 kA at 277 VAC, sufficient for typical commercial panelboard fault levels on 480Y/277 V systems.
Sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing confirmed at quote time.
Rated 20 A continuous with Trip Curve C — magnetic trip between 5 and 10 times rated current, suited for general-purpose branch protection.
