ABB S202P-K32

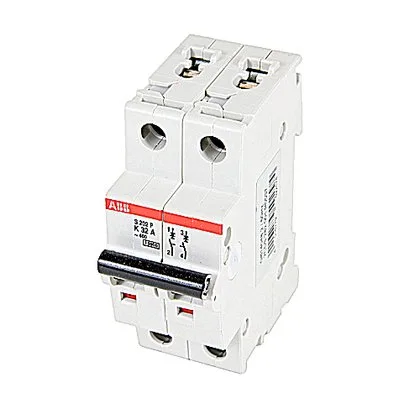

ABB S202P-K32 MCB 2P K 32A 277VAC DIN Rail

MPN S202P-K32

ABB, System Pro M Compact S200P, miniature circuit breaker, S202P-K32, 2-pole, 32 A, Trip Curve K, 277 VAC, 10 kA interrupting capacity, DIN rail mount.

$38.10 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

S202P-K32 specifications
ParameterValue
Product typeTrip Curve K
Current32 A
Breaking capacity10 kA
Poles2
MountingDIN Rail

Product details

The 32 A rating and Trip Curve K are the pair that decide where this breaker lands. Curve K has a magnetic trip range of 8–12× In (256–384 A for this unit), which is tighter than Curve C (5–10× In) but wider than Curve Z (2–4× In). That makes it a good fit for motor-starting circuits and inductive loads where a standard Curve C might nuisance-trip on inrush, but you still want faster short-circuit protection than Curve D (10–20× In). The 10 kA interrupting rating at 277 VAC is the standard branch-circuit fault level for most 277/480 V distribution panels — it will clear a bolted fault without the breaker welding closed.

Panel integration

The 2-pole width is 35 mm (two modular units), and the enclosure is rated IP20 (IP40 with the supplied cover). The actuator is sealable, black, with I/O marking, so it can be locked out for maintenance isolation.

MPN
S202P-K32
