ABB S203-B63

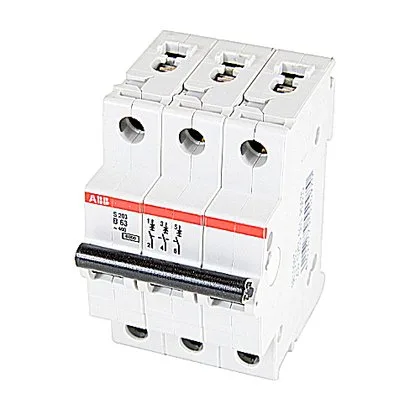

S203-B63 Miniature Circuit Breaker, 3P, 63A, Curve B, 10 kA

MPN S203-B63

ABB S203 series miniature circuit breaker, 3-pole, 63 A, Trip Curve B, 277 VAC, 10 kA interrupting capacity, DIN rail mount.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

S203-B63 specifications
ParameterValue
Product typeTrip Curve B
Current63 A
Breaking capacity10 kA
Poles3
MountingDIN Rail

Product details

The S203-B63 is a 3-pole miniature circuit breaker rated 63 A with a Trip Curve B characteristic, interrupting 10 kA at 277 VAC. Mounts on standard DIN rail for panel integration.

What the ratings mean for fit

63 A is the continuous current rating — sized for a 63 A branch circuit. Trip Curve B means the magnetic trip operates at 3–5× rated current, so it clears short-circuit faults fast but tolerates moderate inrush from resistive loads. At 10 kA SCCR it safely interrupts faults up to that level without cascading upstream — sufficient for most distribution panels fed by a transformer larger than 10 kA prospective.

MPN
S203-B63
