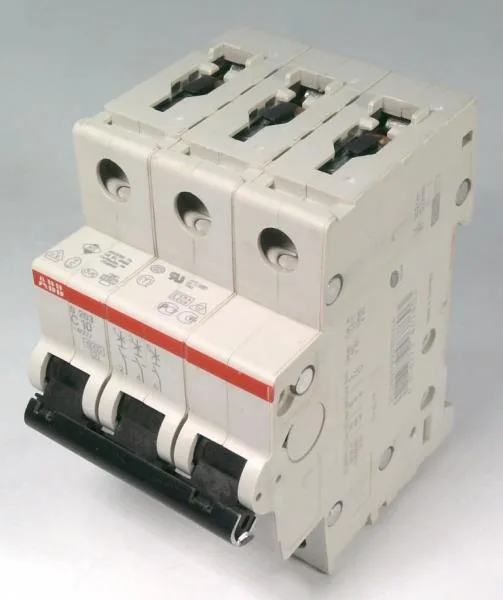

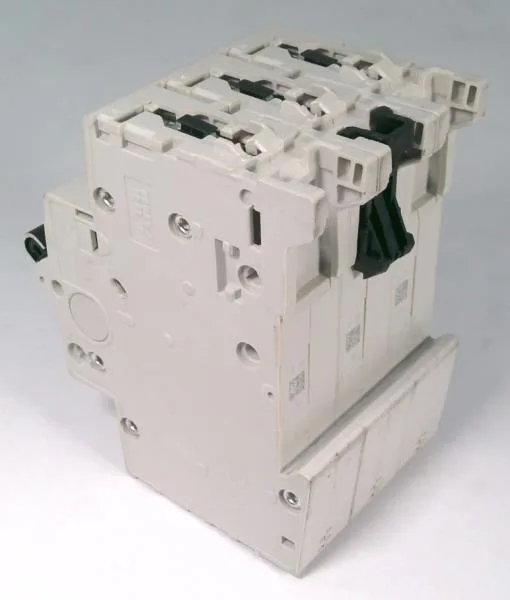

ABB S203-C10 — 3-Pole MCB (DIN Rail)

S203-C10 Miniature Circuit Breaker, 3P, 10A, Curve C, 10 kA

MPNS203-C10

ABB S203-C10, 3-pole miniature circuit breaker, 10 A, Trip Curve C, 277 VAC, 10 kA interrupting rating, DIN-rail mount.

$12.04Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

S203-C10 — Identification
ParameterValue
Number of poles3
S203-C10 — Electrical
ParameterValue
Voltage (AC)277
Current (A)10
S203-C10 — Protection
ParameterValue
Interrupting rating (AC)10 kA
S203-C10 — Mechanical
ParameterValue
Mounting typeDIN Rail
S203-C10 — Other specifications
ParameterValue
TypeTrip Curve C

Product details

The ABB S203-C10 is a 3-pole miniature circuit breaker rated 10 A with a Trip Curve C characteristic, meaning it trips between 5× and 10× rated current — the standard choice for moderate inrush loads like small motors, transformers, and lighting banks where you need short-circuit protection without nuisance tripping on startup.

Snaps onto standard DIN rail, which means it lands in any enclosure with a 35 mm top-hat profile — no adapter plates, no special backplate. Three poles in a single module saves rail space compared to ganging three single-pole breakers; you wire the incoming three-phase feed across the top terminals and the downstream loads off the bottom.

Frequently asked questions

Will S203-C10 drop into a panel specified around S202M-C10?

No — the S202M-C10 is a 2-pole breaker, while the S203-C10 is 3-pole. They share the same DIN-rail footprint, but the S203-C10 occupies three pole widths and requires a three-phase feed; you cannot swap them without rewiring the panel.

MPN
S203-C10
