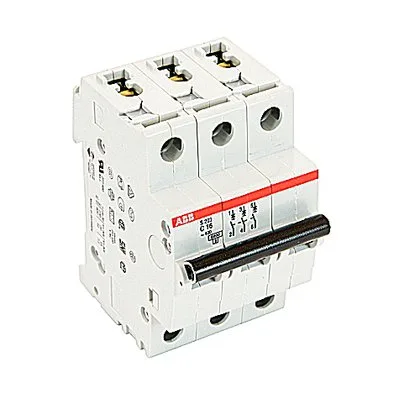

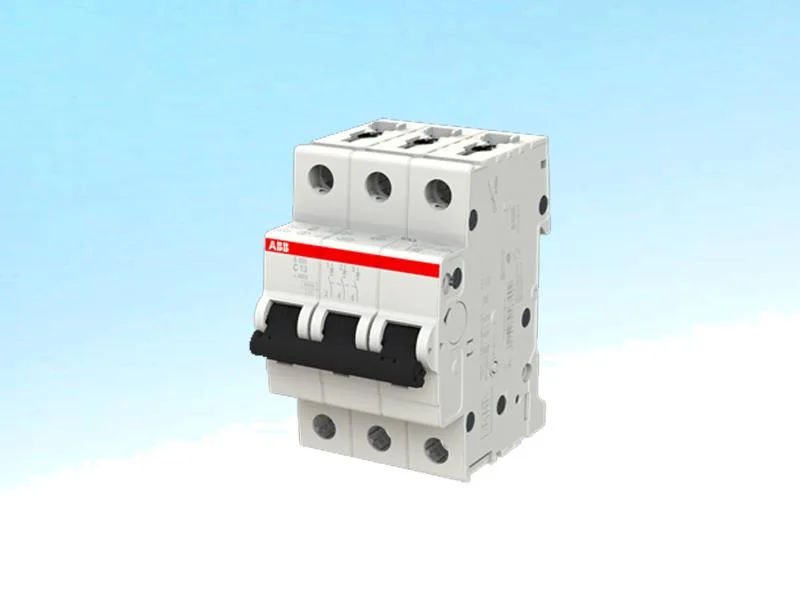

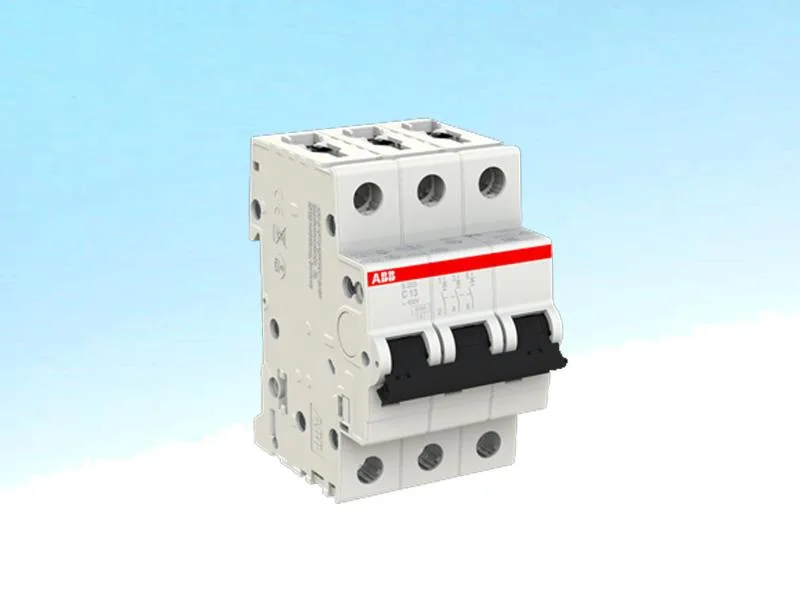

ABB S203-C13 — 3-Pole MCB (DIN Rail)

S203-C13 Miniature Circuit Breaker, 3P, 13A, Curve C, 10 kA

MPNS203-C13

ABB S203-C13 miniature circuit breaker, 3-pole, 13 A, Trip Curve C, 277 VAC, 10 kA interrupting rating, DIN rail mount.

$13.72Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

S203-C13 — Identification
ParameterValue
Number of poles3
S203-C13 — Electrical
ParameterValue
Voltage (AC)277
Current (A)13
S203-C13 — Protection
ParameterValue
Interrupting rating (AC)10 kA
S203-C13 — Mechanical
ParameterValue
Mounting typeDIN Rail
S203-C13 — Other specifications
ParameterValue
TypeTrip Curve C

Product details

The S203-C13 is a 3-pole miniature circuit breaker rated 13 A with a Trip Curve C characteristic, meaning it trips at 5 to 10 times rated current — the standard choice for moderate inrush loads like small motors, transformers, and lighting circuits where you need short-circuit protection without nuisance tripping on startup. The 3-pole format covers three-phase circuits — motor feeds, distribution subfeeds, or three-phase lighting — with a single housing that breaks all three phases simultaneously on a fault.

For a critical-spare cabinet or a BOM line that needs a confirmed fit, the 13 A rating and Curve C characteristic are the load-bearing specs: verify the load's inrush profile stays within the 5–10x In band, and the 10 kA SCCR covers your panel's available fault current.

Frequently asked questions

Where can I buy S203-C13 and how do I get a price?

The S203-C13 is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for a firm quote.

What is S203-C13's listed amps and trip curve?

The S203-C13 is rated 13 A with a Trip Curve C characteristic — trips at 5 to 10 times rated current for moderate inrush loads.

Will S203-C13 drop into a panel specified around S203-C10 without rewiring?

Yes, the S203-C13 shares the same 3-pole DIN-rail footprint, 277 VAC rating, and 10 kA interrupting capacity as the S203-C10. The only difference is the 13 A amp rating versus 10 A — verify the load current and conductor sizing before swapping.

MPN
S203-C13
