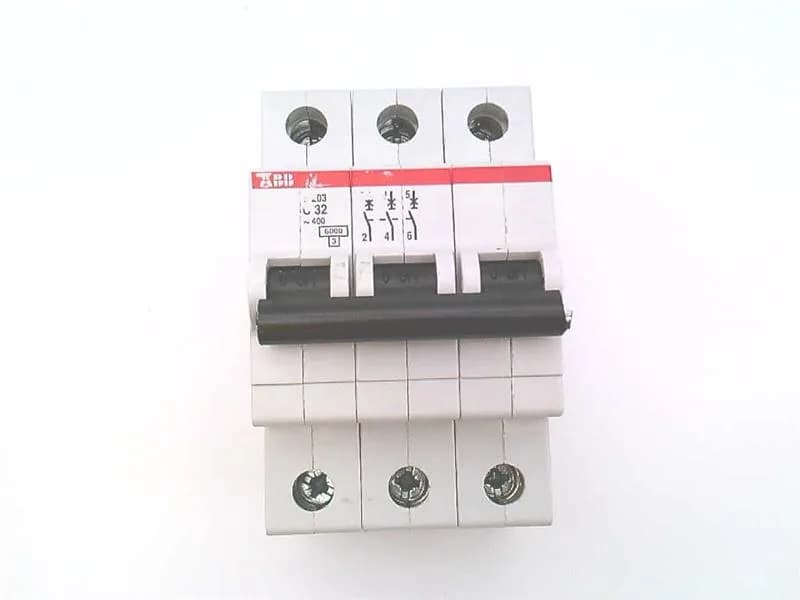

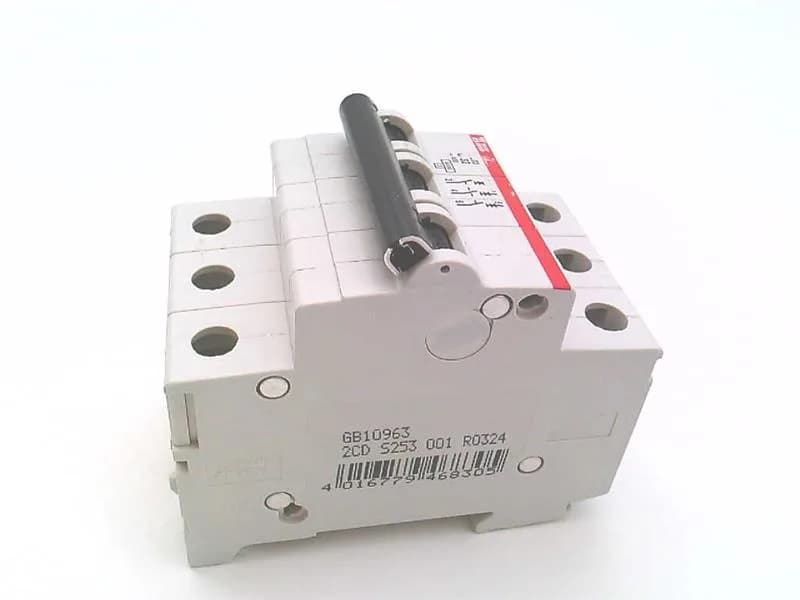

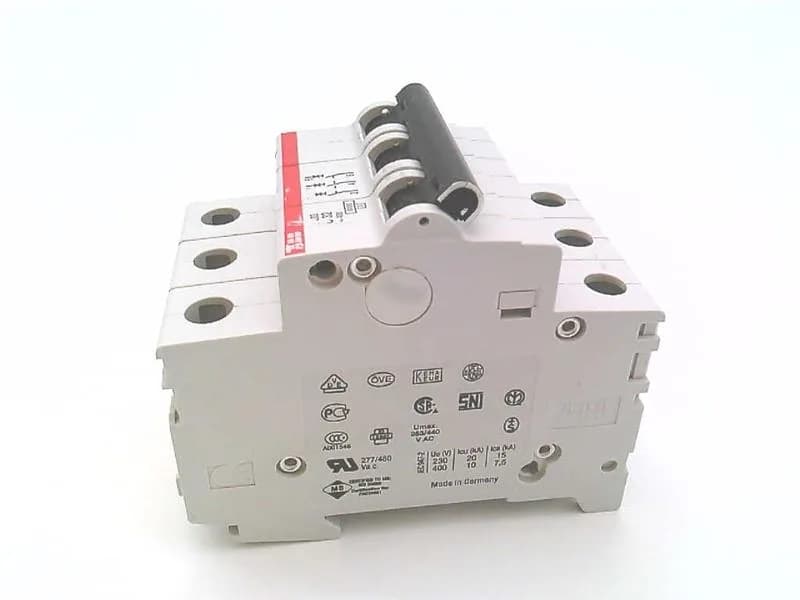

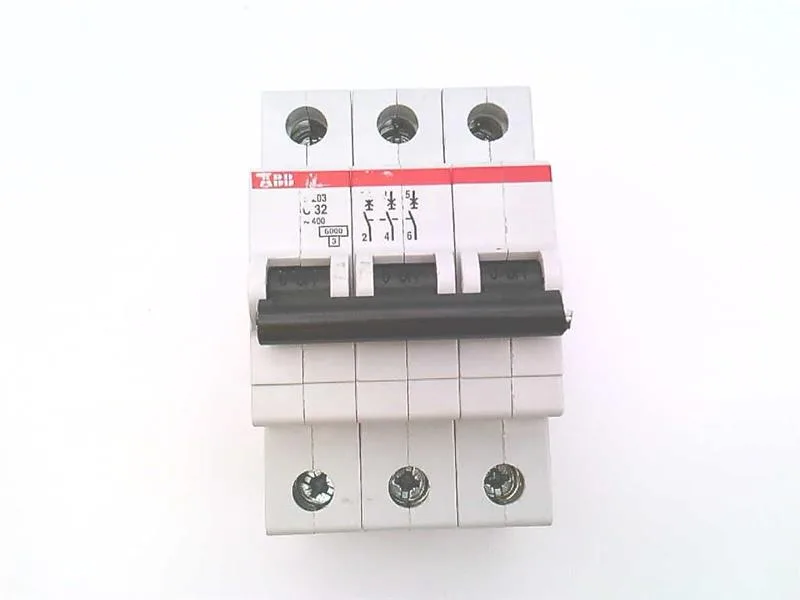

ABB S203-C32, 3-pole 32 A miniature circuit breaker, C-curve, 6 kA breaking capacity (Icn/Icu), DIN rail clip-mount, IP20/IP40.
| Parameter | Value |
|---|---|
| Mounting | Clip Mount |
| Terminal contact type | Bi-Directional Cylinder Lift |
| Tightening torque - Screw-Type max. | 2.8 Nm |
| Voltage | 250 V |
| Current | 32 A |
| Rated Short-Circuit breaking capacity icn | 6 kA |
| Rated Short-Circuit breaking capacity icu | 6 kA |
| Poles | 3 |
| IP rating | IP20;IP40 |
| Depth | 69 mm |
| Width | 52.5 mm |
| Height | 88 mm |
| Overvoltage category | III |
| Tripping characteristics | C |
The ABB S203-C32 is a 3-pole 32 A miniature circuit breaker with C-curve tripping, rated 6 kA short-circuit breaking capacity (both Icn and Icu). C-curve tripping characteristic. Rated insulation voltage 250 V, overvoltage category III. Dimensions: 52.5 mm wide, 88 mm high, 69 mm deep.
Width 52.5 mm, height 88 mm, depth 69 mm. DIN rail clip-mount, IP20 for terminals, IP40 for the enclosure.
