ABB S203-C8

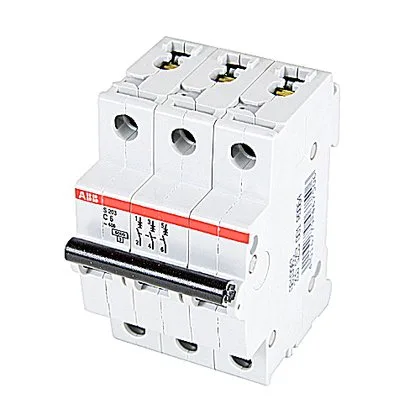

S203-C8 Miniature Circuit Breaker, 3P, 8A, Curve C, 10kA

MPN S203-C8

ABB S203-C8 miniature circuit breaker, 3-pole, 8 A, Trip Curve C, 10 kA interrupting rating at 277 VAC, DIN rail mount.

$19.05 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

S203-C8 specifications
ParameterValue
Product typeTrip Curve C
Current8 A
Breaking capacity10 kA
Poles3
MountingDIN Rail

Product details

The 3-pole footprint takes up three module widths (about 54 mm) in the enclosure. Wire termination is via tunnel terminals — strip length and torque spec follow the standard ABB S200 series practice. No auxiliary contact or shunt trip fits internally on this base unit; those go on the left-side accessory slot if needed.

The 8 A rating with Curve C is a common selection for general-purpose branch circuit protection in distribution boards. At 277 VAC phase-to-neutral (typical for North American lighting panels), the 10 kA interrupting capacity handles most service-entrance fault levels without requiring a current-limiting upstream breaker.

MPN
S203-C8
