ABB S203-D63

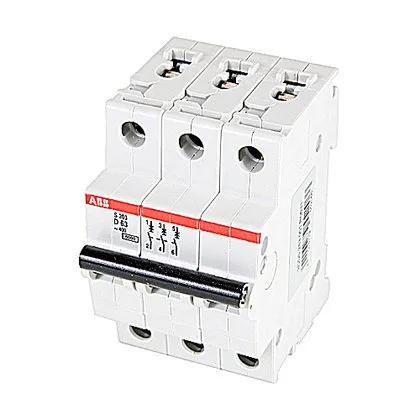

S203-D63 Miniature Circuit Breaker, 63A, 3-Pole, Curve D, DI

MPN S203-D63

ABB S203-D63 miniature circuit breaker, 63 A, 3-pole, Trip Curve D, 480Y/277 VAC, 10 kA interrupting rating, DIN rail mount.

$50.80 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

S203-D63 specifications
ParameterValue
Product typeTrip Curve D
Current63 A
Breaking capacity10 kA
Poles3
MountingDIN Rail

Product details

What the ratings mean for fit

The S203-D63 is a 63 A, 3-pole miniature circuit breaker with a Trip Curve D characteristic, rated for 480Y/277 VAC and a 10 kA interrupting capacity. Curve D means the magnetic trip operates at 10 to 20 times the rated current — designed for loads with high inrush, like motor starters, transformers, or welding equipment. The 10 kA SCCR at 277 V phase-to-neutral tells you it can safely clear a fault up to that level without upstream damage, which matters for panel coordination studies. Mounts on standard DIN rail, so it drops into any 35 mm rail enclosure.

MPN
S203-D63
