What the ratings mean for fit

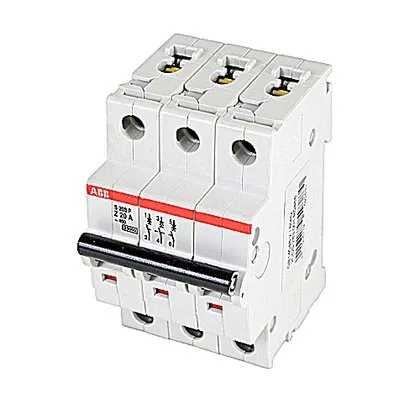

The ABB S203P-Z20 is a 3-pole miniature circuit breaker (MCB) rated 20 A with Trip Curve Z, designed for DIN-rail mounting in distribution panels. The 20 A continuous rating sets the maximum load it carries without tripping under normal conditions — size your downstream wiring and load to stay comfortably below this. Trip Curve Z means it trips within 2 to 3 times rated current on a short circuit, faster than a B or C curve, which suits semiconductor or sensitive electronic loads where even a brief overcurrent can damage components. The 10 kA interrupting rating at 277 VAC tells you it can safely clear a fault up to that level without welding contacts or cascading failure upstream — verify your available fault current at the installation point stays under that ceiling.
Deployment context
Snaps onto standard DIN rail inside a panel enclosure. The 3-pole configuration covers three-phase circuits or three independent single-phase legs ganged together. Rated 277 VAC phase-to-neutral (480Y/277 VAC system), so it fits common North American commercial and light industrial panelboards. The Trip Curve Z characteristic makes it a natural choice for protecting control transformers, PLC power supplies, or DC rectifier outputs where you need fast clearing without nuisance trips from inrush.
