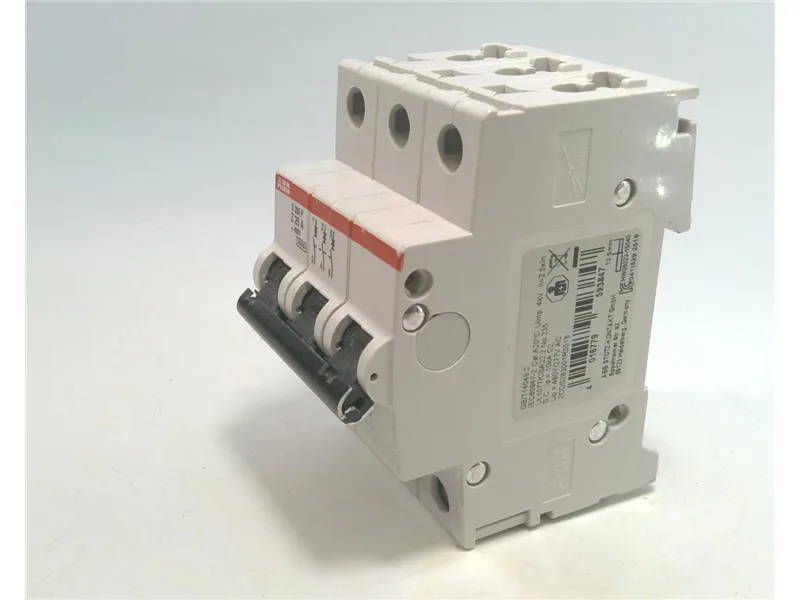

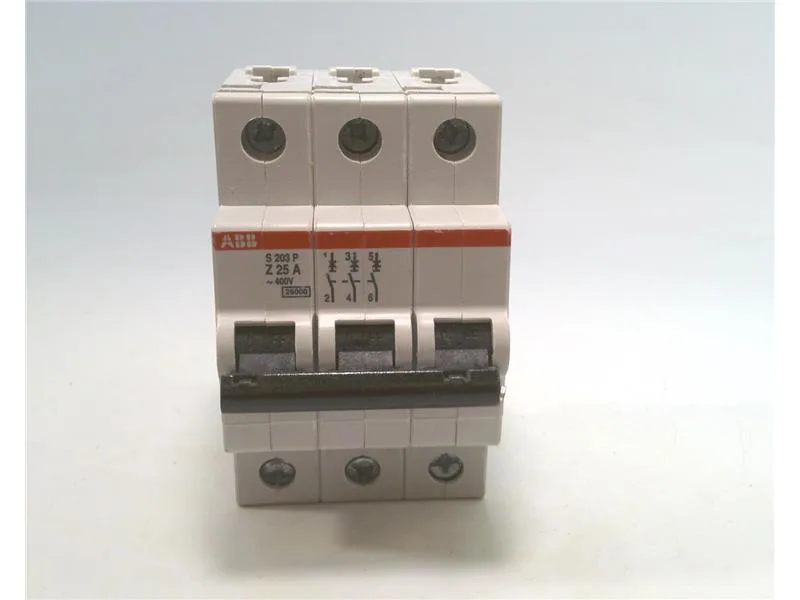

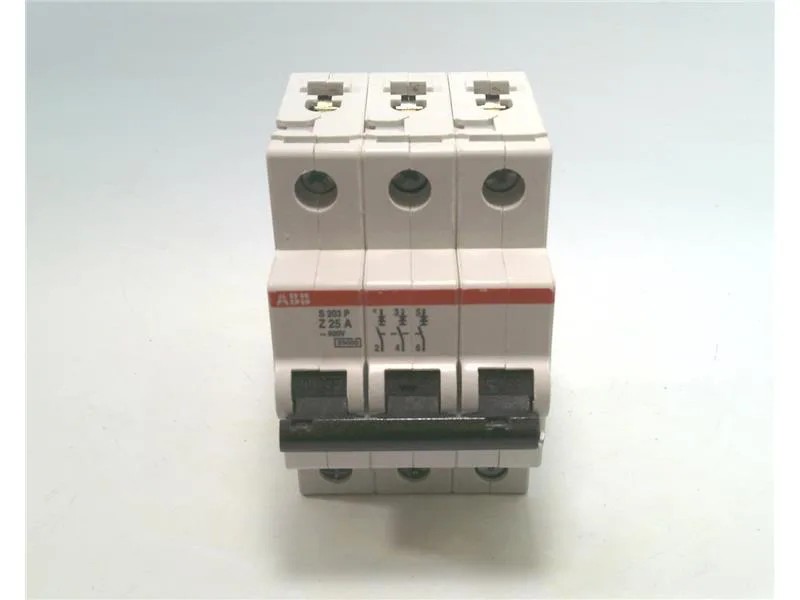

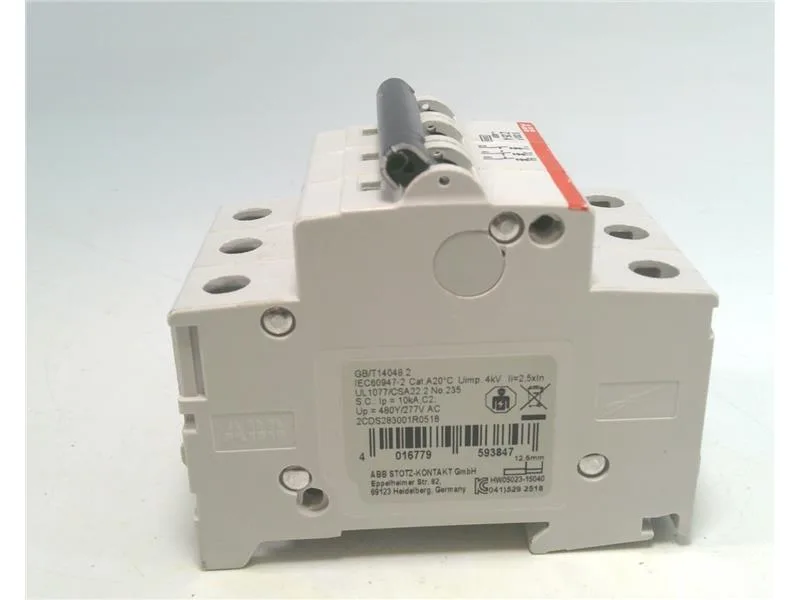

The ABB S203P-Z25 is a 3-pole miniature circuit breaker rated 25 A with a Trip Curve Z characteristic, designed for DIN-rail mounting in distribution panels and control cabinets. The 10 kA interrupting capacity at 277 VAC handles fault currents typical of commercial and light industrial branch circuits. Curve Z trips between 2× and 3× rated current, making it the correct choice for semiconductor and sensitive electronic load protection where standard B or C curves would nuisance-trip on inrush.
What Curve Z means for fit
Trip Curve Z is the tightest standard magnetic trip band — it clears faults at 2× to 3× In (50–75 A for this 25 A unit). That catches short-circuit faults fast enough to protect power supplies, rectifiers, and control transformers without the delayed reaction of a Curve C. If your BOM specifies Curve Z, a B- or C-curve breaker in the same rail slot will pass the same ampacity but may not clear a semiconductor fault before the device fails short.
Panel integration notes
Snaps onto standard 35 mm DIN rail. The 3-pole footprint occupies three modular units (17.5 mm per pole). Terminal capacity accepts up to 25 mm² conductor. No special busbar required for the 25 A rating — standard pin or fork busbars for the S200 series fit directly.
