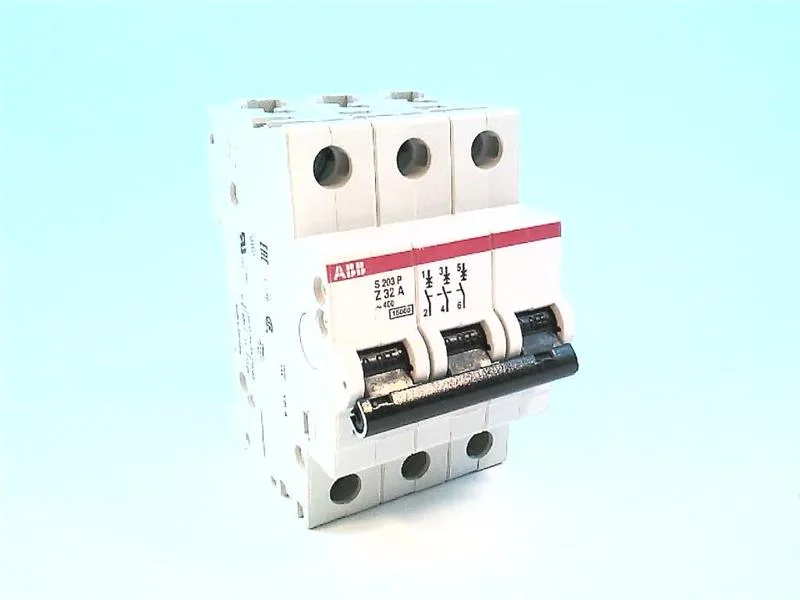

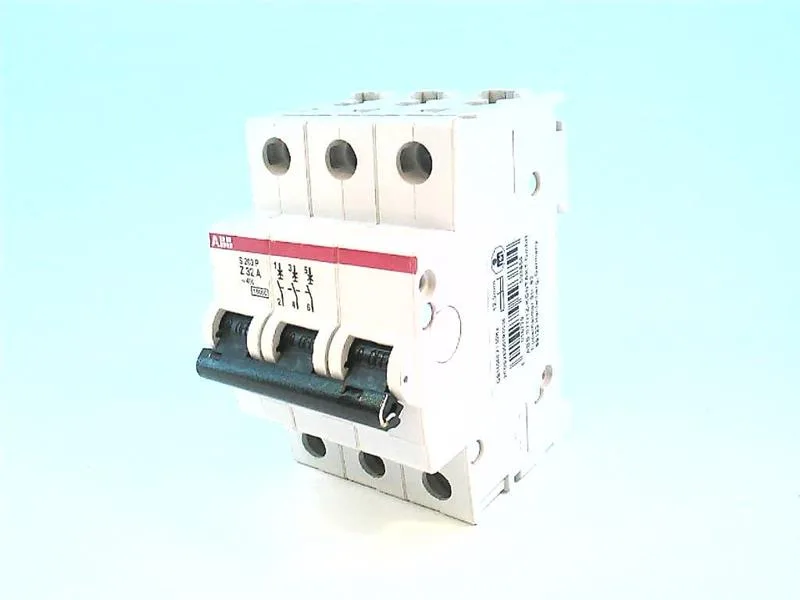

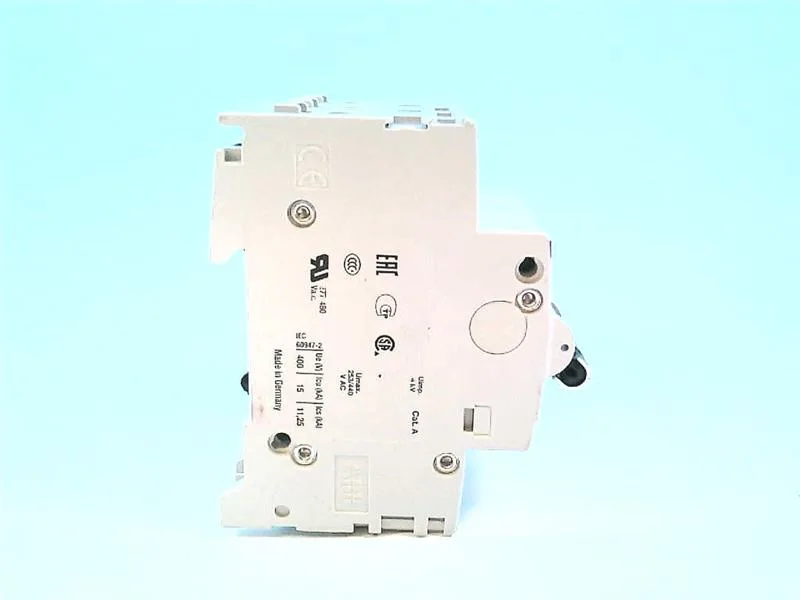

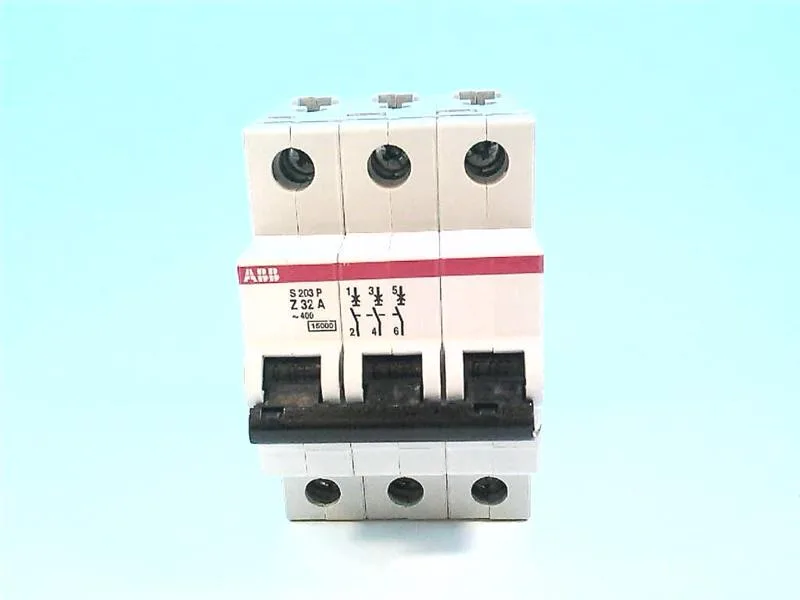

The ABB S203P-Z32 is a 3-pole miniature circuit breaker from the System Pro M Compact S200P series, rated 32 A with a Z-curve magnetic trip characteristic. It handles 480Y/277 VAC at 50/60 Hz — a common voltage for North American 277 V lighting and control panels fed from a 480/277 V wye secondary.
Z-curve trip: what it means for the line
Z-curve breakers trip magnetically at 2–3× rated current (64–96 A for this 32 A unit). That's tighter than a B-curve (3–5×) and much tighter than a C-curve (5–10×). In a turbine nacelle or motor control center, Z-curve is the go-to for protecting sensitive semiconductor loads, control transformers, or long cable runs where a standard C-curve would let a fault cook the wiring before it trips. The magnetic trip acts fast — no thermal delay — so a hard short clears before the upstream feeder breaker sees it.
