What this MCB is and what the ratings mean

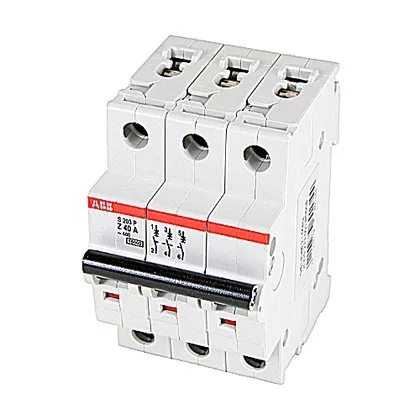

The ABB S203P-Z40 is a 3-pole miniature circuit breaker rated 40 A with a Trip Curve Z characteristic, designed for DIN-rail mounting in distribution panels. The 40 A rating means it carries continuous loads up to that current without tripping, and the 10 kA interrupting rating at 277 VAC tells you it can safely clear a fault up to that level — enough for most commercial and light industrial service-entrance or sub-feed applications. Curve Z is the tightest standard trip curve, tripping between 2 and 3 times rated current (80–120 A for this unit), which makes it the right choice for protecting semiconductor circuits, PLC power supplies, and other sensitive electronic loads where a standard C-curve would let through too much energy before opening.
Where it fits in the panel
Snaps onto standard 35 mm DIN rail, same footprint as the rest of the S200 series. Three poles means it switches all phases simultaneously — required for three-phase sub-feeds or motor branch circuits where you need full disconnection. The 277 VAC phase-to-neutral rating matches 480Y/277 V wye systems, so it's a direct fit for North American commercial panels fed from a 480/277 V transformer.
