The magnetic trip threshold sits between 8x and 12x In. Rated 277 VAC line-to-neutral (or 480Y/277 V wye systems) and carries a 10 kA interrupting rating per IEC 60898 / EN 60898 — that's the standard for household and similar installations, so it's certified for the typical 10 kA prospective fault current you'd see in a North American light-industrial panel fed from a 75 kVA transformer. If you're swapping out a failed breaker in an existing panel, the DIN-rail clip and tunnel terminals (compatible with 1–25 mm² conductor) mean no panel rework — just lever the old unit off, clip the new one on, and torque the terminals.

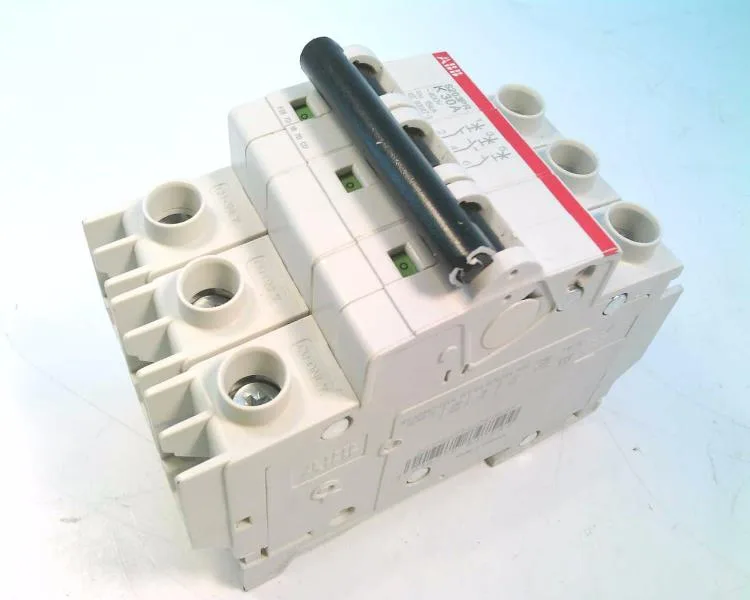

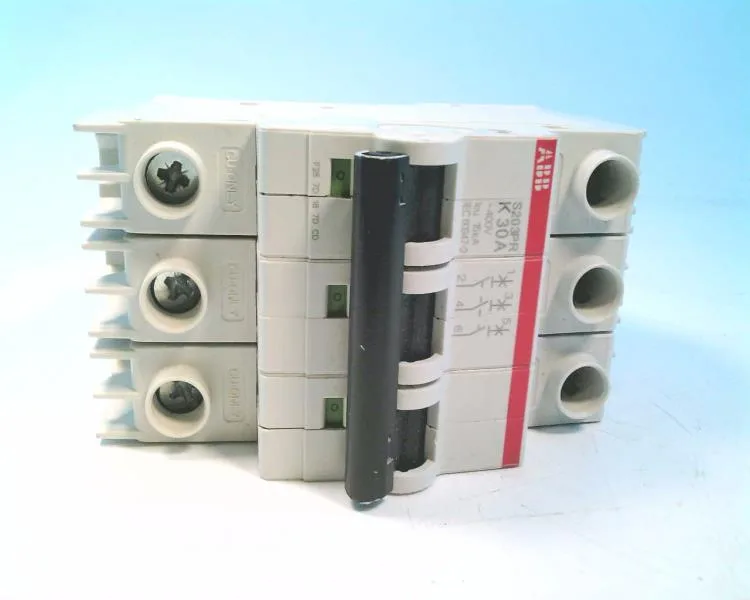

ABB S203PR-K30 MCB, 3P, 30A, Curve K, 10kA
MPNS203PR-K30
ABB S200PR RTT series, 3-pole miniature circuit breaker, 30 A, Trip Curve K, 277 VAC, 10 kA interrupting capacity, DIN rail mount.
$83.54Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Amps | 30 |
| Type | Trip Curve K |
| Poles | 3 |
| Mounting | DIN Rail |
| Volts AC | 277 |
| Breaking capacity | 10 kA |
Product details
Frequently asked questions
Where can I buy the S203PR-K30?
This part is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — no stock count or lead-time number is stated here, but the channel is open and the part is actively manufactured.
MPN
S203PR-K30
