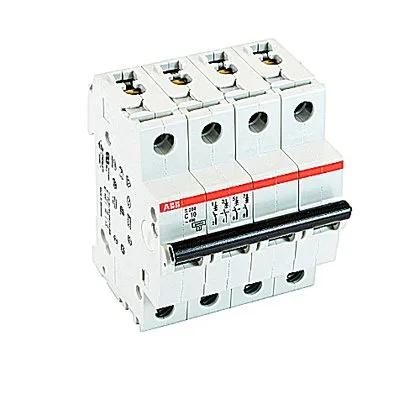

ABB S204-C10, 4-pole miniature circuit breaker, 10 A, Trip Curve C, 277 VAC, 10 kA interrupting rating, DIN rail mount.
| Parameter | Value |
|---|---|
| Amps | 10 |
| Type | Trip Curve C |
| Poles | 4 |
| Mounting | DIN Rail |
| Volts AC | 277 |
| Breaking capacity | 10 kA |
The ABB S204-C10 is a 4-pole miniature circuit breaker rated at 10 A with a Trip Curve C characteristic, meaning it trips at 5 to 10 times rated current — the standard choice for protecting general-purpose loads like lighting circuits, control transformers, and moderate inrush equipment in commercial and industrial panels. Snaps onto standard DIN rail, so it integrates directly into existing ABB S200-series or any 35 mm rail panel without adaptors.
Yes — both the S204-C10 and S204-B32 share the same 4-pole DIN-rail footprint, same 277 VAC rating, and same 10 kA interrupting rating. The difference is the trip curve: Curve C (5-10x In) vs Curve B (3-5x In). If the panel was designed for a 32 A breaker, swapping to a 10 A unit changes the load protection — the physical fit is identical, but the ampacity must match the circuit.
The S204-C10 is sourced and quoted to order against an RFQ through independent distribution; availability and current pricing are confirmed at quote time.
