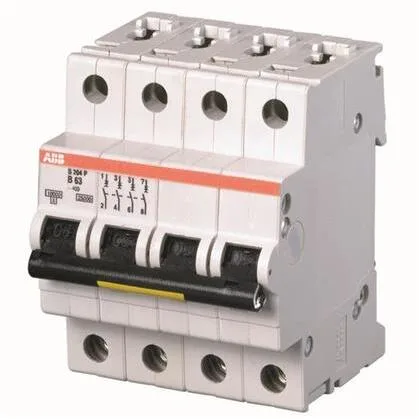

ABB S204P-K32 — 4-Pole MCB (DIN Rail)

ABB S204P-K32 S200P 4 Pole 32A MCB, Trip Curve K, 10 kA

MPNS204P-K32

ABB S200P series, S204P-K32, 4-pole miniature circuit breaker, 32 A, Trip Curve K, 277 VAC, 10 kA interrupting rating, DIN rail mount.

ABB S204P-K32 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

S204P-K32 — Specifications
ParameterValue
Amps32
TypeTrip Curve K
Poles4
MountingDIN Rail
Volts AC277
Breaking capacity10 kA

Product details

Curve K is designed for loads with moderate inrush — typically motor circuits, transformers, or solenoid valves — where the magnetic trip threshold sits between 8 and 12 times rated current, avoiding nuisance trips on startup while still providing short-circuit protection.

Snap-on DIN rail mounting per EN 60715. The 4-pole footprint occupies four module widths (72 mm on a standard DIN rail). Rated 277 VAC line-to-neutral or 480Y/277 VAC three-phase systems — common in North American lighting and small motor panels. The S200P series uses tunnel terminals accepting up to 25 mm² conductor; torque to 2.8 Nm.

Frequently asked questions

What is the interrupting rating of S204P-K32?

The S204P-K32 has a 10 kA interrupting rating at 277 VAC, sufficient for most commercial and light industrial fault levels.

Will S204P-K32 drop into a panel specified around S804S-C16 without rewiring?

No — the S804S-C16 is a 16 A, Curve C breaker with a 50 kA interrupting rating; the S204P-K32 is 32 A, Curve K, 10 kA. They share the same DIN rail footprint and 4-pole form factor, but the trip curve and interrupting rating differ, so a direct swap requires verifying the load and fault current coordination.

Where can I buy S204P-K32 and how is it quoted?

The S204P-K32 is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — no stock or price figures are published here.
