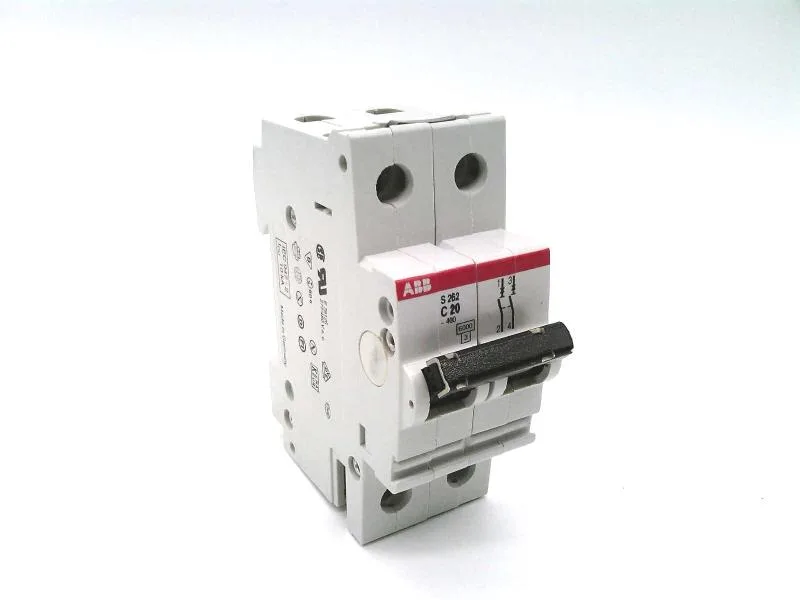

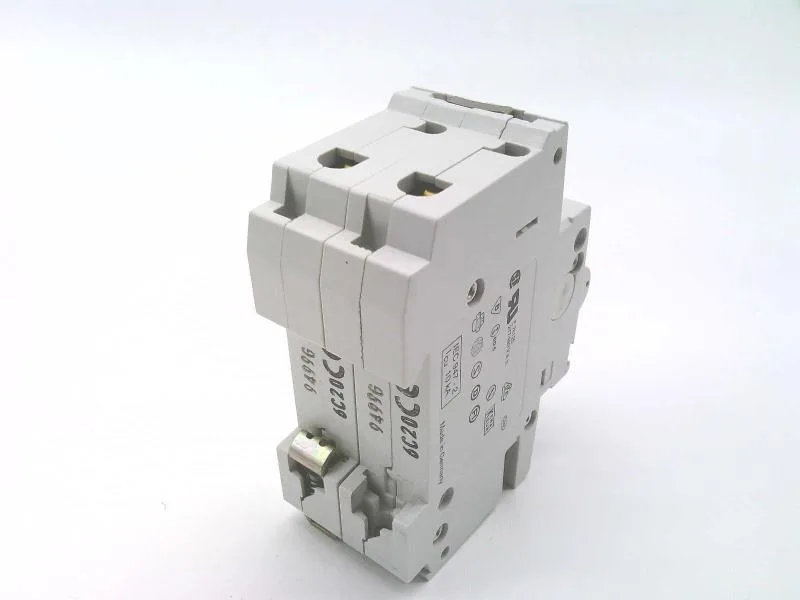

ABB S262-C20, DIN rail miniature circuit breaker, 20 A C-curve, 0.45 kg, current production.
| Parameter | Value |
|---|---|
| Weight | 0.45 kgs |
It is listed as current production, meaning it remains in the active catalog and is not subject to a phase-out or last-time-buy notice.
The C-curve (trips at 5–10× rated current) makes this breaker suited for general-purpose branch circuits with moderate inrush — think lighting banks, small motor circuits, or control transformers. The 20 A rating covers the typical 4–5 kVA single-phase load or a 3–4 kW three-phase motor at 400 V.
The S262-C20 is sourced to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.
Both are DIN-rail miniature circuit breakers from ABB, but the S273-K40A is a 3-pole K-curve 40 A unit — different pole count, trip characteristic, and rating. The S262-C20 is a single-pole C-curve 20 A breaker. They are not drop-in replacements; the panel's wiring and protection coordination would need to match the S262-C20's ratings.
