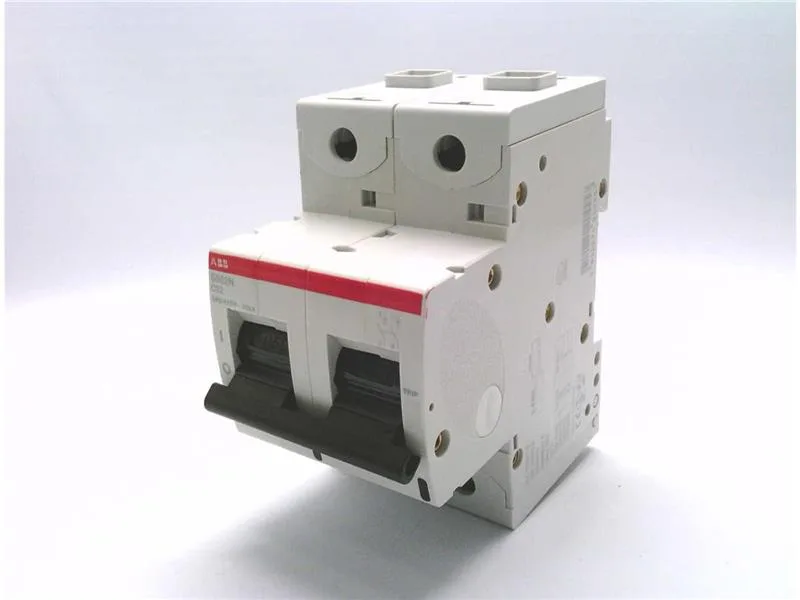

ABB, S800 series, High Performance Miniature Circuit Breaker, S802N-C32, 2-pole, 32 A, Trip Curve C, 240 VAC, DIN rail mount.
| Parameter | Value |
|---|---|
| Amps | 32 |
| Type | Trip Curve C |
| Poles | 2 |
| Mounting | DIN Rail |
| Volts AC | 240 |
The DIN-rail footprint matches standard 35 mm rail in any enclosure. Two-pole format means it occupies two module widths — factor that into your panel fill and gland-plate planning. The 32 A rating at 240 VAC is the thermal-magnetic rating; no derating curve is published here, but standard practice is to derate by 20% when ganged with other breakers in a sealed enclosure above 40 °C ambient.
The S802N-C32 is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for a firm price and lead time.
The S802N-C32 is rated at 32 A with a Trip Curve C characteristic, meaning it trips at 5 to 10 times the rated current for moderate inrush protection.
As a current-production ABB S800 series MCB, the S802N-C32 carries CE marking and is designed to meet IEC/EN 60898-1 and IEC/EN 60947-2 standards. RoHS and REACH compliance documentation is available from ABB upon request.
