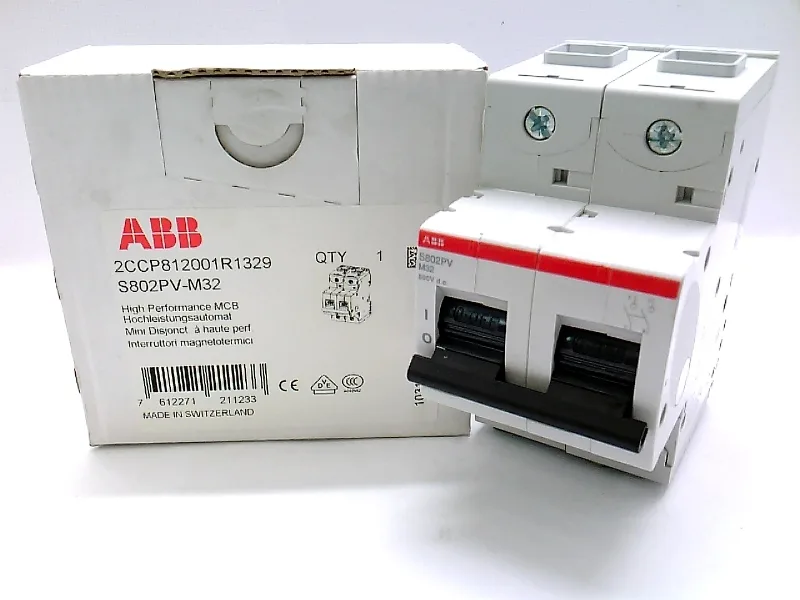

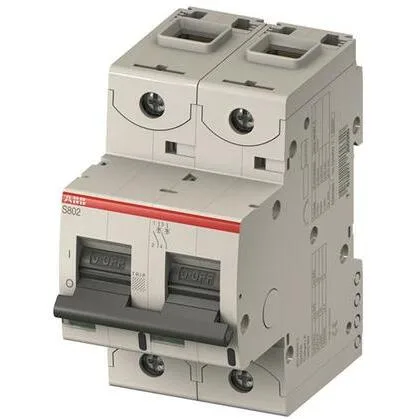

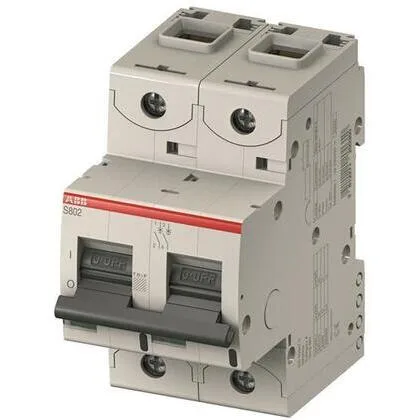

ABB S802PV-M32 — 2-Pole MCB (DIN Rail)

ABB S802PV-M32 MCB, 32A, 2P, PV Curve, DIN Rail

MPNS802PV-M32

ABB S800 series, S802PV-M32, 2-pole MCB, 32 A, PV characteristic curve, 5 kA interrupting capacity, DIN rail mount.

$69.16Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

S802PV-M32 — Specifications
ParameterValue
Amps32
Poles2
MountingDIN Rail
Breaking capacity5 kA

Product details

The PV curve is tailored for photovoltaic string protection — designed to handle the DC fault characteristics and continuous current of solar arrays without nuisance tripping from inverter harmonics or inrush. The 5 kA interrupting rating (AC) covers typical residential and light commercial PV combiner boxes and string-level disconnects.

The 2-pole width occupies two modular units (36 mm). For a PV combiner panel, plan for the 32 A rating when sizing busbars and gland-plate entries; the S800 family's compact footprint leaves room for surge protection devices or DC isolators on the same rail.

Frequently asked questions

Where can I buy the ABB S802PV-M32?

Sourced and quoted to order against an RFQ through independent distribution channels; availability and current pricing confirmed at quote time.

What does the PV curve mean on this breaker?

The PV characteristic curve is designed for photovoltaic string protection — it handles the DC fault profile and continuous current of solar arrays, avoiding nuisance trips from inverter harmonics or PV module inrush.

Will S802PV-M32 drop into a panel specified around S202M-C25?

Both are 2-pole DIN rail MCBs, but the S202M-C25 uses a C-curve (general-purpose) and is rated 25 A with 6 kA interrupting — the S802PV-M32 uses a PV-specific curve at 32 A with 5 kA interrupting. They are not direct drop-in substitutes; verify the trip curve and interrupting requirements for the application.

MPN
S802PV-M32
