ABB TF42-13 Overload Relay, 13 A, 3 Poles, Trip Class 10

MPNTF42-13

ABB A-Line, NEMA thermal overload relay, TF42-13, 3 poles, 13 A rated, adjustable 10-13 A, Trip Class 10, for AF9-AF38 contactors.

$15.54 – $21.59Ref. price · indicative, final on quote

Add to RFQ

ABB TF42-13 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

TF42-13 — Specifications
Parameter	Value
Poles	3
Series	A-Line
Product type	NEMA
Current	13
Rated current range	{'max': 13, 'min': 10, 'unit': 'A'}

Product details

Thermal overload relay for AF contactor line

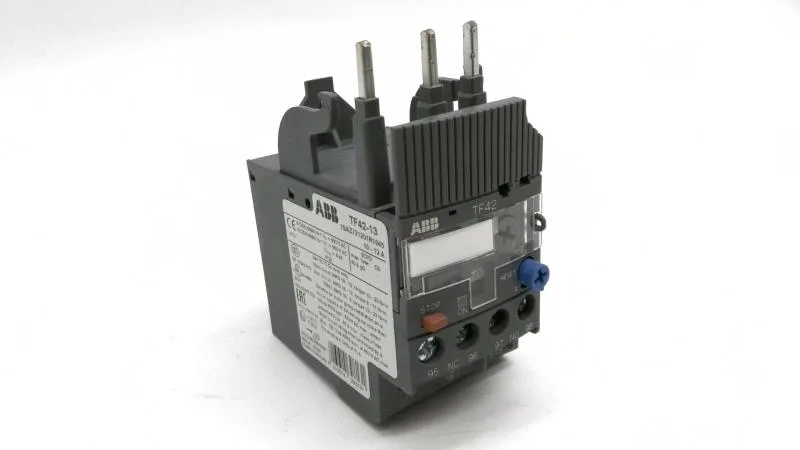

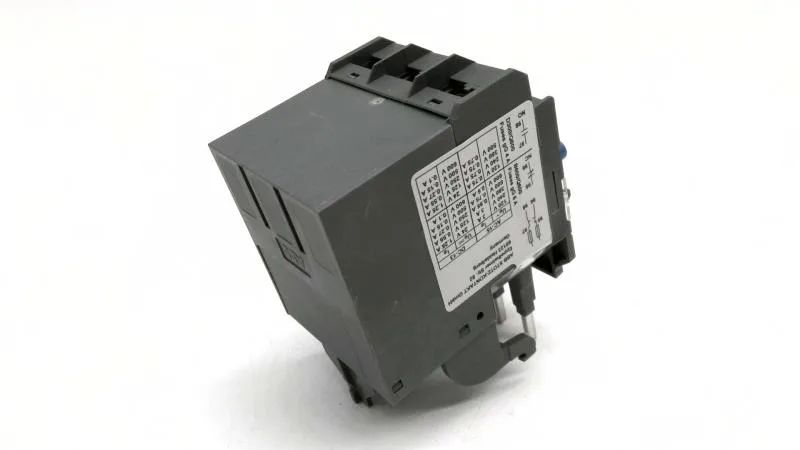

The ABB TF42-13 is a 3-pole thermal bimetal overload relay rated at 13 A, with an adjustable range of 10 to 13 A.

Mounts directly on AF9–AF38 contactors

This relay is designed for direct mounting on ABB AF9 through AF38 frame contactors. The mechanical interlock and power circuit connection happen through the contactor's own terminals — no separate wiring between contactor and overload for the main poles. Selectable manual or automatic reset via the front dial.

Frequently asked questions

What is the closest functional second-source for TF42-13?

The closest functional peer is the TF42-1.3, which shares the same 3-pole NEMA form factor and 10-13 A adjustment range. The TF42-13 drops into the same panel footprint and mounts on the same AF9-AF38 contactors without rewiring.
