ABB XT7HU312EFFF000XXX

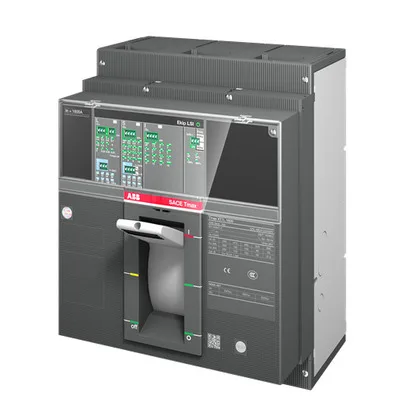

ABB XT7HU312EFFF000XXX SACE XT7H MCCB, 1200 A, 65 kA

MPN XT7HU312EFFF000XXX

ABB SACE XT7H molded case circuit breaker, 1200 A, 3-pole, 65 kA interrupting rating, Ekip Dip LSI trip unit, front terminals, UL 100% rated.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

XT7HU312EFFF000XXX specifications
ParameterValue
Product typeBreaker, Molded Case
Current1200 A
Breaking capacity65 kA
Poles3

Product details

The ABB XT7HU312EFFF000XXX is a SACE XT7H molded case circuit breaker rated for 1200 A continuous current across three poles, with a 65 kA interrupting capacity at 480 VAC. The Ekip Dip LSI trip unit gives you long-time, short-time, and instantaneous pickup adjustments, so you can coordinate selectively with downstream breakers.

At 1200 A and 65 kA SCCR, this breaker handles main incoming protection for a 480 V switchboard feeding motor control centers or large lighting panels. The UL 100% rating means it can carry full rated current continuously without derating — a real advantage in a warm enclosure where a standard 80%-rated breaker would need to be oversized. Front terminals simplify bus-bar or cable connections in a lineup; the drawout version (not this fixed-mount variant) would add cassette-style extraction for maintenance isolation.

MPN
XT7HU312EFFF000XXX
