ABB ZA16-80

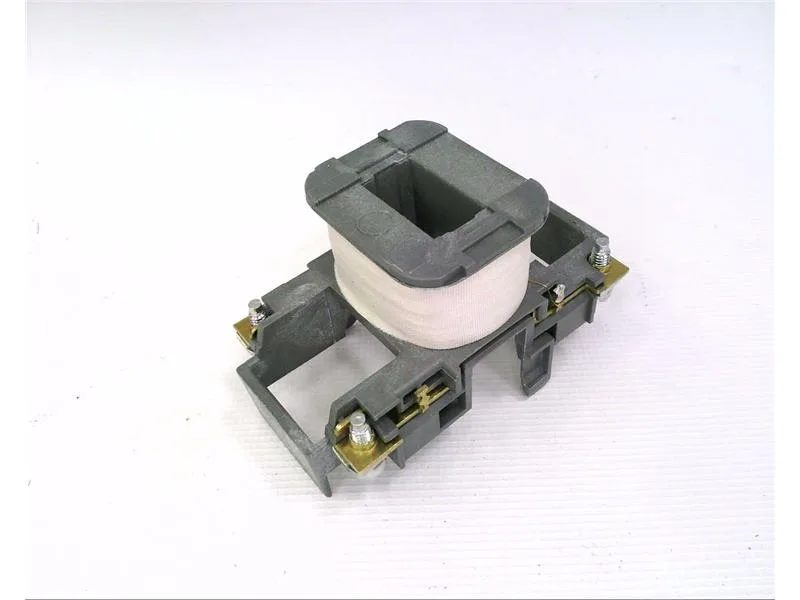

ABB ZA16-80 Replacement Coil, 240 VAC, A9-A16 Frame, EOL

MPN ZA16-80
End of Life

ABB A-Line, Replacement Coil, 220/240V AC, for A9 – A16 Frame Size Contactors, ZA16-80.

$48.69 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

ZA16-80 specifications
ParameterValue
Product typeAccessories

Product details

240 VAC coil for A9–A16 frames

The ABB ZA16-80 is a replacement coil for the A-Line contactor series, wound for 220/240 V AC control voltage and sized for A9 through A16 frame contactors. Rated 240 V AC control, this coil pulls in the contactor armature when the control circuit energises — the same voltage class that powers most panel-level PLC and relay outputs in 230 V distribution systems.

For a BOM line that depends on this coil, the practical sourcing path is the surplus and independent-distribution channel.

Fit confirmation for the panel

The coil mounts directly onto the contactor magnet assembly — no adapter plate or wiring harness change. It replaces the original coil in an A9, A12, or A16 frame contactor without altering the panel layout or the DIN-rail footprint. Control voltage is 220/240 V AC, so the coil draws its hold-in current from the same 230 V control transformer that feeds the rest of the panel. Verify the existing control-circuit protection is rated for the inrush of this coil size before committing the BOM.

MPN
ZA16-80
