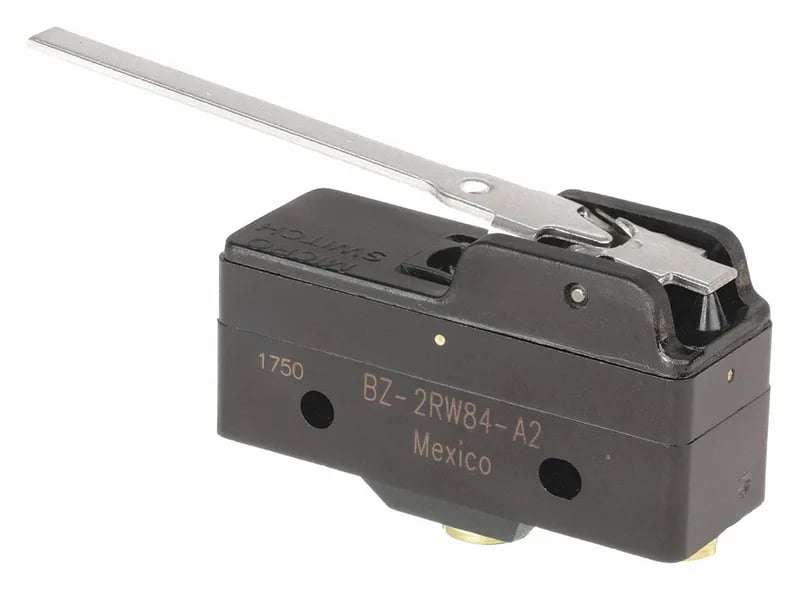

Honeywell BZ-2RW84-A2
MPNBZ-2RW84-A2
Micro Switch, BZ, 15A, 1CO, 0.3N, Straight Lever
$19.45 – $24.20Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Series | BZ |
| Contact form | 1NO/1NC |
| Mounting hole diameter | 1/8 in |
| Center mounting hole distance | 1 in |
| Electrical connection | Screw |
| Operating temperature - maximum | 185 °F |
| Operating temperature - minimum | -67 °F |
| Body depth | 0.7 in |
| Body width | 1.94 in |
| Body height | 0.95 in |
| Body material | Phenolic |
| Overall depth | 0.7 in |
All specifications
| Parameter | Value |
|---|---|
| Overall width | 1.94 in |
| Overall height | 0.95 in |
| Standards | CE; CSA; ENEC; UKCA; UL Listed |
| Brand | HONEYWELL |
| Pre-Travel | 0.328 in |
| Display qty | 1 |
| Over travel | 0.219 in |
| Release force | 0.13 ozf |
| Actuator style | Lever |
| Display sell UOM | EA |
| AC contact rating | 15 A @ 125 to 480 V |
| DC contact rating | 0.25 A @ 250 V0.5 A @ 125 V |
| Lever actuator length | 2.5 in |
| Operating force - maximum | 1 ozf |
| Differential travel - maximum | 0.05 in |
| Differential travel - minimum | 0.007 in |
MPN
BZ-2RW84-A2
