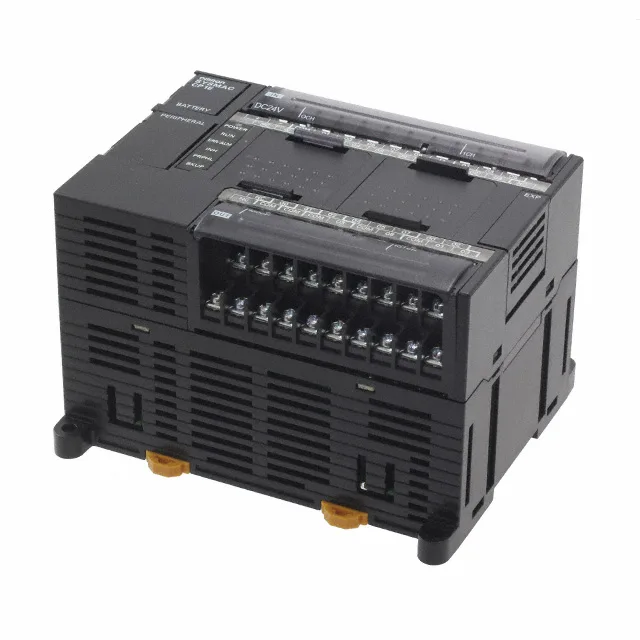

Omron CP1E-N30DT-D

Omron CP1E-N30DT-D PLC, 18 Inputs 12 Outputs, 24VDC

MPN CP1E-N30DT-D
Obsolete

Omron CP1E series PLC, CP1E-N30DT-D, 18 digital inputs, 12 solid-state outputs, 24 VDC supply, 8K words memory, expandable to 40 modules (3 racks), DIN rail or chassis mount.

$214.00 – $555.50 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

CP1E-N30DT-D specifications
ParameterValue
SeriesCP1E
Display typeNo Display
Supply voltage24 VDC
ProtocolRS-232C, Option Cards Available
MountingChassis Mount, DIN Rail
Temp operating max55 °C
Temp operating min0 °C
Weight1.3 lbs (589.7 g)
PackageBulk

Product details

Obsolete — sourcing through independent channels

Omron has marked the CP1E-N30DT-D as obsolete. Sourcing is through independent surplus and broker channels — quantities are lot-specific and confirmed at RFQ.

What the 18 inputs / 12 outputs mean for fit

The CP1E-N30DT-D carries 18 digital inputs and 12 solid-state outputs, all running on a 24 VDC supply. The 18 inputs handle discrete sensors — limit switches, proximity sensors, pushbuttons — while the 12 transistor outputs drive solenoids, contactor coils, or indicator lamps without relay maintenance. With 8K words of program memory, this controller fits mid-size machine sequences that don't need floating-point math or large data tables.

Panel integration and expansion

Mounts on DIN rail or direct to a chassis plate using the integral slots. The base unit expands to 40 modules across 3 racks max — add analog I/O, temperature inputs, or serial communication option cards as the application grows. The RS-232C port on the CPU handles programming via CX-One software and basic HMI or inverter links.

Approvals and environmental range

Carries CE, cULus, Lloyd's Register, and NK (Nippon Kaiji Kyokai) approvals — covers industrial control panels for general machinery, marine, and shipboard applications. Rated for 0 °C to 55 °C ambient, so it suits non-conditioned cabinets on the factory floor or inside a marine switchboard.

MPN
CP1E-N30DT-D
