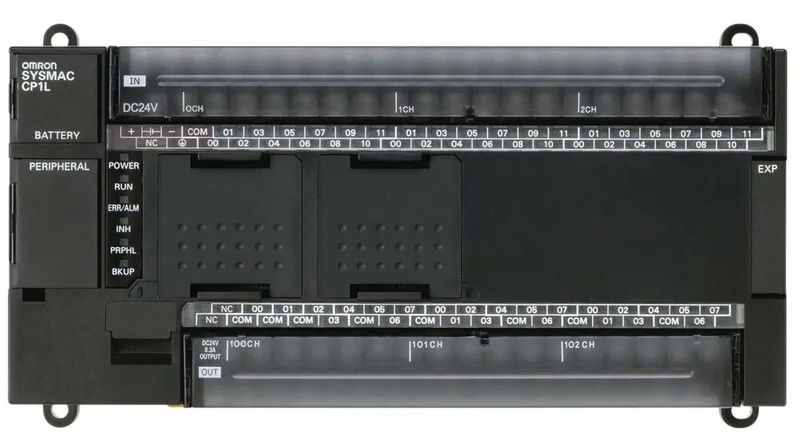

The Omron CP1LM60DT1D.1 is a 60-point PLC from the CP1 Series, built for medium-density machine control. It carries 36 digital inputs, 24 sourcing transistor outputs, and a single 8-bit analogue input for a potentiometer. Scan time is 0.4 ms, program capacity 10,000 steps, data memory 32,000 words with a battery-backed buffer rated for up to 5 years. USB port is the default programming interface; ladder diagram is the supported language. Mounts on DIN rail, IP20.
Integration notes
DIN rail mount, IP20 enclosure, screw terminals with two impulse outputs, four high-speed counters, real-time clock, battery backup, and expandability to 60 I/O points.
