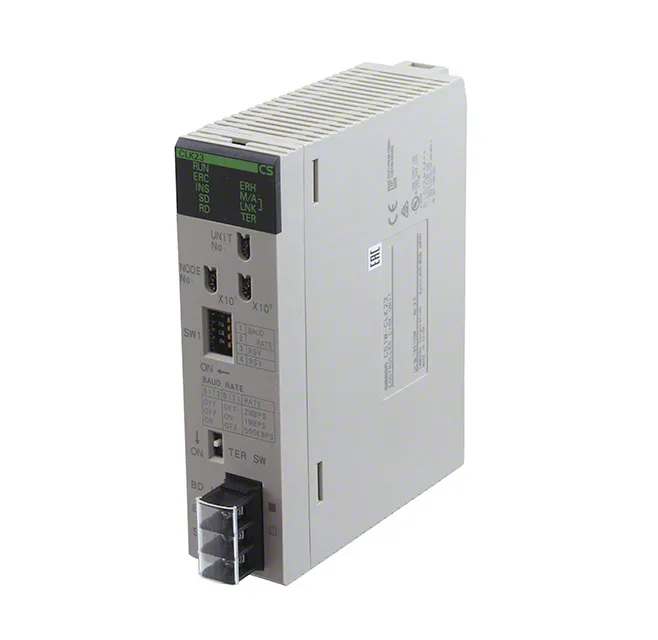

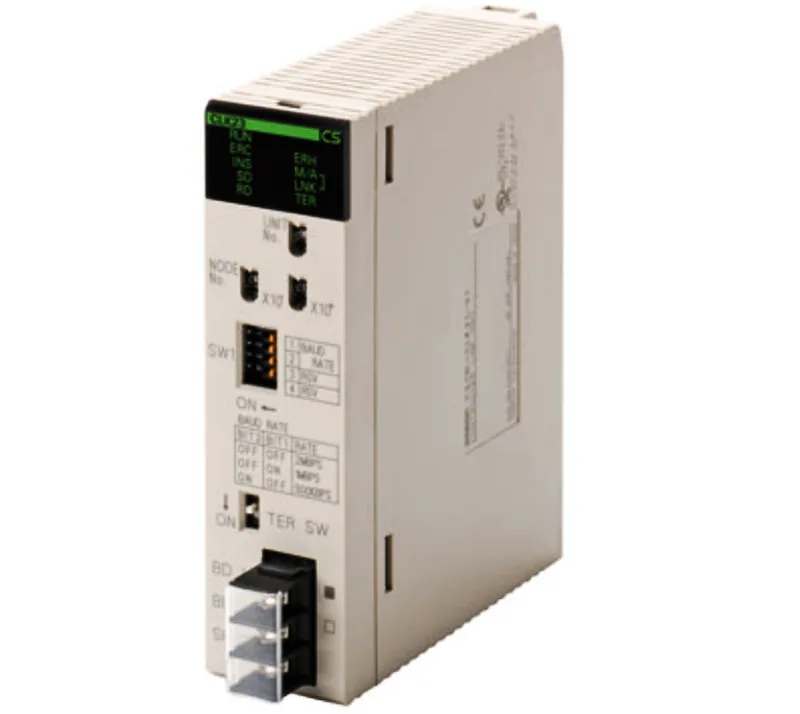

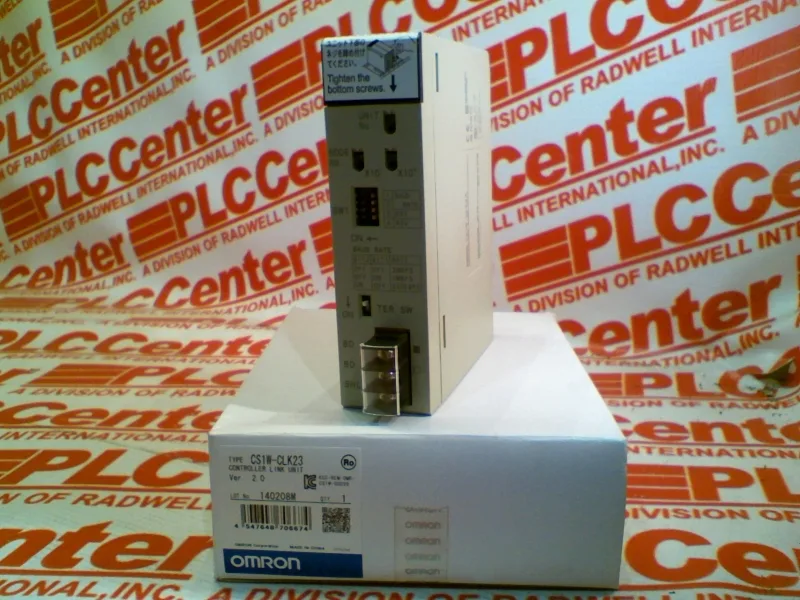

The CS1W-CLK23: Twisted-pair link module for the Omron CS1 backplane. Handles Controller Link network communication on CS Series PLCs. Screw terminals for the twisted-pair wiring — no special tool needed, just a screwdriver. Backplane mount means it slots into the same chassis as your CPU and I/O modules. Approved for industrial and marine environments (CE, cULus, Lloyd, NK). If you're replacing a failed unit on site, this is what's on the van.
Mounting & Wiring
Slots into any CS series backplane slot. Screw terminals accept solid or stranded wire for the twisted-pair cable. Node address set via rotary switches on the front panel. No external power supply needed — powered from the backplane. Ground shield at one end only for noise management.
