Omron E2BM30LS15WPB12MOMI — Proximity Sensors

E2BM30LS15WPB12MOMI Inductive Sensor, PNP NO, 15mm, IP67

MPNE2BM30LS15WPB12MOMI

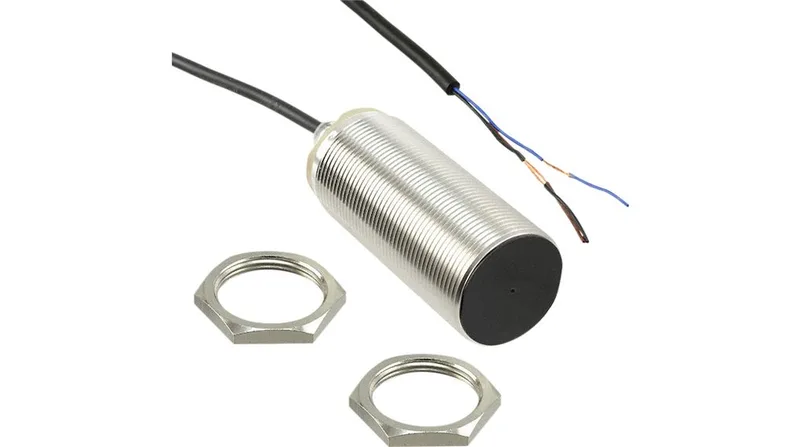

E2B series inductive sensor, M30, PNP NO, flush mount, 15 mm sensing distance, 250 Hz, IP67, brass housing, 2 m cable.

$122.32 – $135.31Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

E2BM30LS15WPB12MOMI — Identification
ParameterValue
SeriesE2B
E2BM30LS15WPB12MOMI — Sensing
ParameterValue
Sensing distance, max.15 mm
E2BM30LS15WPB12MOMI — Electrical
ParameterValue
Operating voltage, max.30 V
Operating voltage, min.10 V
Termination typeCable, 2 m
E2BM30LS15WPB12MOMI — Output
ParameterValue
Switching frequency250 Hz
Load current200 mA
E2BM30LS15WPB12MOMI — Mechanical
ParameterValue
Mounting typeFlush Mount
Length82 mm
Housing materialBrass
E2BM30LS15WPB12MOMI — Environmental
ParameterValue
Operating temperature, max.70 °C
Operating temperature, min.-25 °C
IP protection ratingIP67

Product details

The E2BM30LS15WPB12MOMI: This is a flush-mount M30 inductive sensor from the E2B line — the kind you bury in a bracket near a bearing housing and forget about. Rated IP67, so it'll shrug off a washdown without flinching, and the brass housing holds up out here in the grease. Switches at 250 Hz, which is plenty fast for counting parts on a conveyor or sensing a cam, but not for a high-speed pick-and-place. Sensing distance is 15 mm, typical for flush-mount targets on steel. Two-metre pigtail means no connector to corrode on a wet route.

Closest sibling is the E2BM30LS15M1B1OMI, which matches every electrical spec — same 15 mm range, 250 Hz, PNP NO, same IP67 and brass body — but terminates with an M12 connector instead of a 2 m cable. That changes the wiring method: the cable model lands directly into a terminal block; the connector model plugs into a mating cordset. Length also differs by 4 mm (82 mm vs 86 mm) so the cable version is slightly shorter, but the M30 thread and flush-mount body are identical. It'll bolt into the same bracket, but if your panel was built expecting a connector, you'll need to adapt the wiring or swap to the pigtail version. No change in sensing performance.

Frequently asked questions

Will E2BM30LS15WPB12MOMI drop into a panel that was specified around the connector version E2BM30LS15M1B1OMI?

The mounting thread (M30) and sensing performance are identical, but termination differs — this model has a 2 m cable, not an M12 connector. You will need to land wires instead of plugging in a cordset. The length is 82 mm versus 86 mm for the connector version, so it fits the same bracket. No rewiring of the sensor itself is required, but the panel wiring scheme may need adjustment if it was designed for a quick-disconnect.
