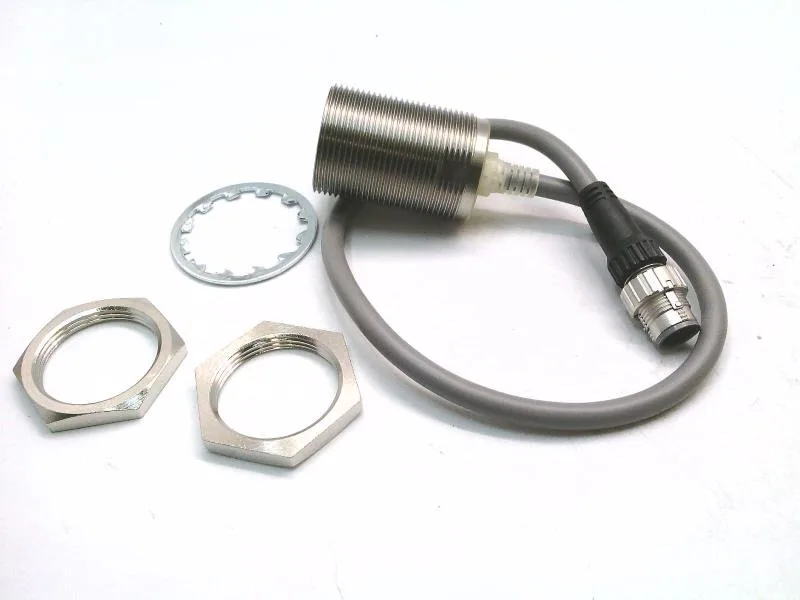

The Omron E2E-X10B4-M1TJ-IL2 0.3M is a shielded inductive proximity sensor from the E2E series, delivering a 10 mm sensing distance in a DC 3-wire PNP configuration with NO/NC switching output selectable via IO-Link. IO-Link communication runs at COM2 (38.4 kbps), standard for most IO-Link master ports; the sensor also supports traditional discrete output when used without a master. The 0.3 m pigtail terminates in an M12 Smartclick connector, a locking variant that audibly clicks when fully seated — eliminates partial-mating failures common on standard M12s in high-vibration panels.
Omron E2E-X10B4-M1TJ-IL2 0.3M Proximity, Shielded 10mm IO-Li
MPNE2E-X10B4-M1TJ-IL2 0.3M
Omron E2E-X10B4-M1TJ-IL2 0.3M, E2E Series, Shielded Inductive Proximity Sensor, 10 mm, PNP NO/NC, IO-Link, M12 Smartclick Connector.
$46.99Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Sensing
| Parameter | Value |
|---|---|
| Sensing distance | 10 mm sensing distance |
| Shielding | Shielded |
Output
| Parameter | Value |
|---|---|
| Switching output | NO/NC |
Mechanical
| Parameter | Value |
|---|---|
| Cable length | 0.3 meter cable |
Other specifications
| Parameter | Value |
|---|---|
| Weight | 0.0045 kgs |
| Connector specs | Smartclick |
| Connection method | M12 connector |
| IO-Link baud rate | IO-Link, COM2 (38.4 kbps) |
| Power supply & output | DC 3-wire, PNP open-collector |
Product details
Frequently asked questions
What is the sensing distance and output type?
10 mm shielded sensing, PNP NO/NC configurable via IO-Link or wiring.
What IO-Link baud rate does it support?
COM2 (38.4 kbps), typical for most IO-Link master ports.
What connector is on this sensor?
A 0.3 m pigtail with an M12 Smartclick connector — a locking M12 that clicks when fully seated.
MPN
E2E-X10B4-M1TJ-IL2 0.3M
