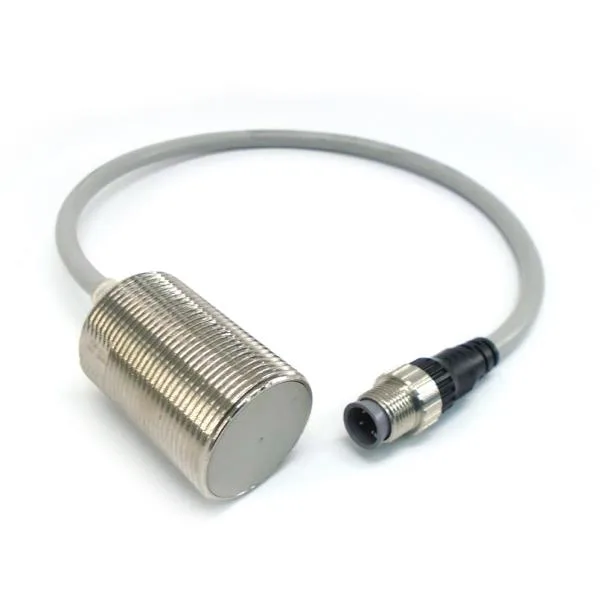

The Omron E2E-X10D1-M1J 0.3M is a shielded inductive proximity switch with a 10 mm sensing range. Output is DC 2-wire normally open, wired via a pre-attached M12 connector with 0.3 m PVC cable. The shielded construction allows flush mounting in metal without derating the sensing distance.
Key ratings for selection
Shielded construction permits flush mounting in metal without derating the sensing distance. Cable is PVC.
How it compares to the E2E-X2D1-M3G
E2E-X2D1-M3G: also shielded, DC 2-wire normally open, but with a 2 mm sensing range and an M8 4-pin connector (vs M12 pre-wired cable). The 10 mm version provides greater standoff, useful for targets with vibration or misalignment. The M12 pre-wired cable eliminates the need for a separate female pigtail. They are not mechanically interchangeable on the same bracket without changing the mounting hole size and wiring.
