The E2E-X3D1S: The shielded face allows flush mounting in metal, and the 12 mm threaded barrel fits standard M12 mounting holes. The 2-wire DC NO output simplifies wiring for PLC digital inputs or relay coils, but watch polarity — 2-wire DC sensors have a voltage drop across the output that can affect low-voltage PLC cards. Rated IP67 with NEMA 1, 12, 13, 3, 4, 6 enclosure ratings. The cable resists cutting oil, and operating temperature is -13°F to 158°F.

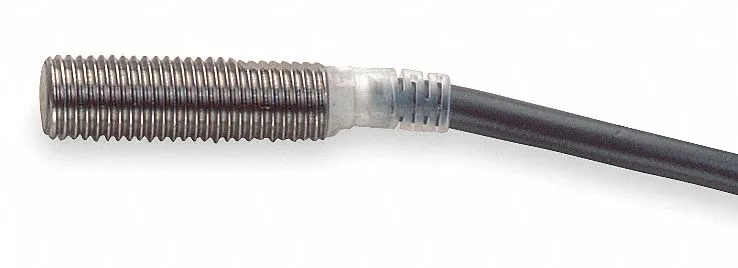

Omron E2E-X3D1S Proximity Sensor, M12 Shielded, 3mm, NO
MPNE2E-X3D1S
Omron E2E Series Inductive Cylindrical Proximity Sensor, M12 Shielded, 2-Wire DC NO, 3 mm Sensing Distance, 10-30 VDC, IP67.
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | E2E |
| Parameter | Value |
|---|---|
| Sensing distance, max. (alt.) | 3 mm |
| Sensing method | Inductive |
| Sensing-face shielding | Shielded |
| Parameter | Value |
|---|---|
| Supply voltage | Not Rated ; 10-30V DC |
| AC supply voltage rating | Not Rated |
| DC supply voltage rating | 10-30V DC |
| Number of wires | 2 |
| Electrical connection | Bare Wire |
| Electrical installation type | Prewired Cable |
| Parameter | Value |
|---|---|
| Output circuit contact form | NO |
| Output circuit type | DC-Type |
| Includes indicator lights | Indicator Lights Included |
| Output circuit | DC-Type |
| Parameter | Value |
|---|---|
| Body style | Cylindrical |
| Overall height | 38 mm |
| Body material | Brass |
| Parameter | Value |
|---|---|
| Operating temperature, max. (alt.) | 158 °F |
| Operating temperature, min. (alt.) | -13 °F |
| IP rating | IP67 |
| Parameter | Value |
|---|---|
| Standards / certifications | CCC; CE; UR |
Product details
Frequently asked questions
Can I use the E2E-X7D1S as a drop-in replacement for the E2E-X3D1S?
No. The E2E-X7D1S has an M18 threaded barrel (18 mm diameter) versus the M12 of the E2E-X3D1S, and a 7 mm sensing distance instead of 3 mm. The mounting hole size and actuation target distance would both need to change. Electrically they are identical (2-wire DC NO, 100 mA), but physically incompatible without rework.
What compliance markings does the E2E-X3D1S carry?
It is certified to CCC, CE, and UR standards per the listing. These cover China export, EU machinery directive, and UL recognition for North American panels.
