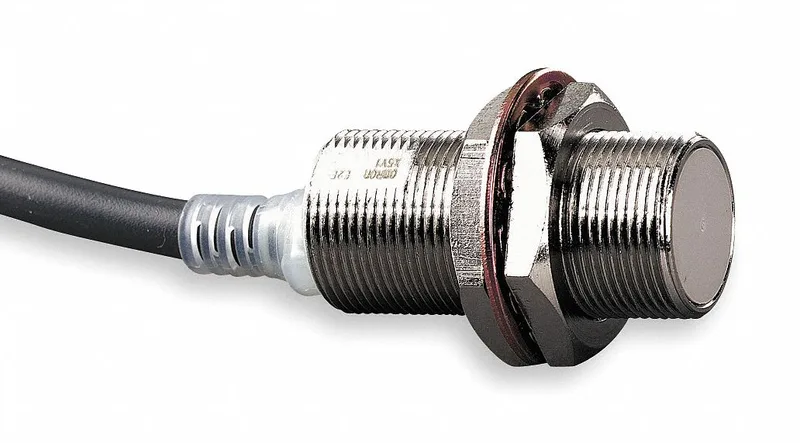

The E2E-X5Y1: M18 shielded inductive proximity sensor from the E2E series. Senses ferrous metals at 5 mm with a 2‑wire AC output rated 20–264 V AC. Switching current is 100 mA maximum, 5 mA minimum – per the datasheet limit for this cable-terminated body. Stainless steel 303 housing, IP67 rated.
Prewired with a 2 m cable, bare wire ends. M18 threaded barrel, 43 mm overall height, 18 mm sensor diameter, shielded face – mount flush to the target for rated 5 mm sensing. Operating temperature –40 to 185 °F, covering most indoor and outdoor panel environments.
