The E2E-X7D2-N 2M: The shielded barrel allows flush mounting in metal panels without derating the sensing distance. Two-wire DC sensors have a voltage drop at the load – confirm your PLC input sees a solid on-state above 10 VDC when driving a typical 2-wire load at 12–24 V. The 0.8 mA leakage is the off-state spec; pick inputs with a guaranteed off threshold above that value.

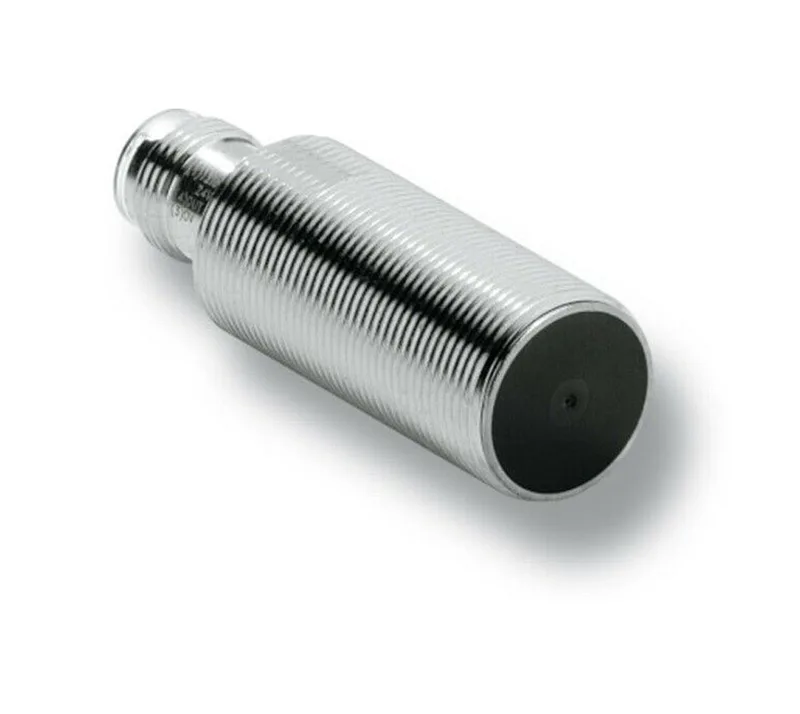

Omron E2E-X7D2-N 2M M18 Shielded Inductive Prox, 7mm
MPNE2E-X7D2-N 2M
Omron E2E series, Inductive Proximity Sensor, M18, Shielded, DC 2-wire, 7 mm sensing distance, 12-24 VDC, 0.5 kHz response.
$46.93 – $48.26Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Sensing distance | 7 mm ±10% |
| Parameter | Value |
|---|---|
| Size | M18 |
| Parameter | Value |
|---|---|
| Weight | Approx. 0.13 Kg |
| Shielded | Yes |
| Product type | DC 2-wire Models |
| Set distance | 0 to 5.6 mm |
| Response speed | 0.5 kHz |
| Sensing object | Ferrous metal |
| Leakage current | 0.8 mA max. |
| Standard sensing object | Iron,18 x 18 x 1 mm |
| Power supply voltage (operating voltage range) | 12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max. |
Product details
Frequently asked questions
What is the barrel size on this sensor?
M18 threaded body, shielded, allowing flush mounting.
Will the E2E-X7D2-N 2M replace an E2C-X1R5AH without rewiring?
No. The E2C-X1R5AH is an M8 heat-resistance sensor head for an amplifier unit, with a different mounting size, sensing distance (1.5 mm), and cable type. The E2E-X7D2-N is a self-contained M18 2-wire DC sensor; they are not mechanically or electrically interchangeable.
