The Omron E3S-AD11 DC10-30 is a diffuse-reflective photoelectric sensor using a red LED at 700 nm, rated for sensing distances of 10 to 200 mm on a 100 × 100 mm white mat paper target. It operates on 10–30 VDC, draws 30 mA max (plus approximately 15 mA with turbo function enabled), and carries an IP67 enclosure rating (NEMA 4X). Hysteresis is 20% max of the sensing distance.

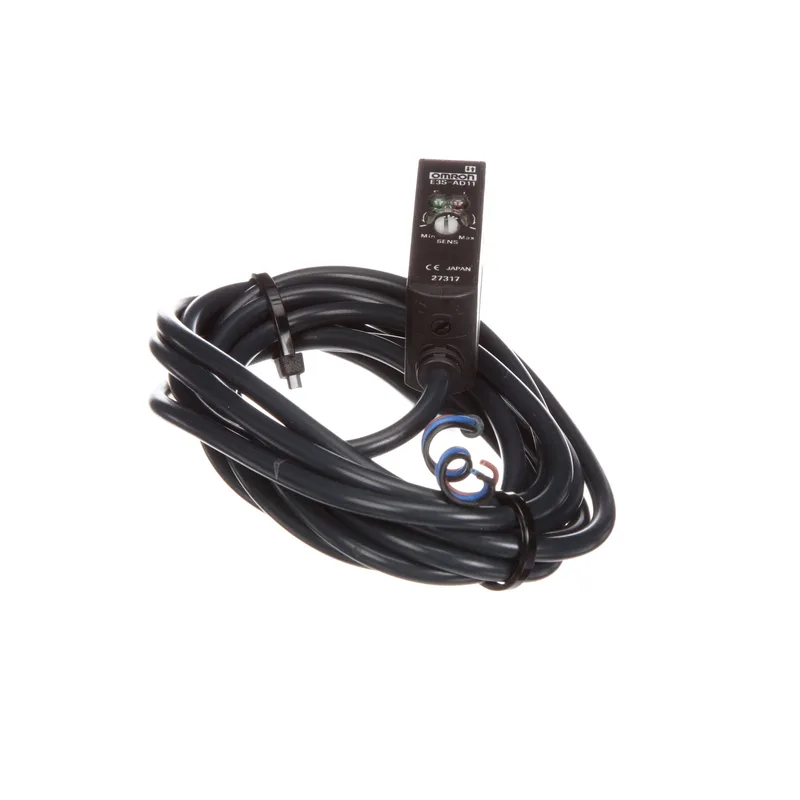

Omron E3S-AD11 DC10-30 Diffuse-Reflective Sensor, 10–200 mm
MPNE3S-AD11 DC10-30
Omron E3S-AD11 DC10-30 diffuse-reflective photoelectric sensor, red LED (700 nm), sensing distance 10–200 mm on white paper, IP67, 30 mA max.
$134.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Model | E3S-AD11 |
| Parameter | Value |
|---|---|
| Sensing method | Diffuse-reflective Sensors |
| Sensing distance | 10 to 200 mm (white paper 100 × 100 mm ) |
Product details
Frequently asked questions
What is the sensing range of the Omron E3S-AD11 on white paper?
Diffuse range varies sharply with target color/surface and buyers need the canonical 10-200 mm spec to size their application.
Is the E3S-AD11 NPN or PNP output and how is it wired to a PLC?
Sinking vs sourcing output dictates PLC input card compatibility and wiring color mapping for controls engineers.
What is the modern replacement or cross reference for the obsolete E3S-AD11?
EOL status forces buyers to qualify E3FA, E3ZM, or E3F2 alternates without losing form-fit-function.
How do you wire an Omron E3S-AD11 3-wire sensor and what are the pin/wire colors?
Wire color-to-function mapping is the most common panel-builder lookup and the datasheet often disagrees with marketing sheets.
Is the Omron E3S-AD11 still in production and what is its lifecycle status?
Determines whether to stock spares, seek allocation, or immediately requalify an alternate before line-down events.
What are the electrical specs (supply 10-30V DC, load 30 mA, response time) for the E3S-AD11?
PSU sizing, breaker coordination, and high-speed scan compatibility all hinge on these buried electrical characteristics.
MPN
E3S-AD11 DC10-30
