Omron E3T-SL24 — Photoelectric Sensors

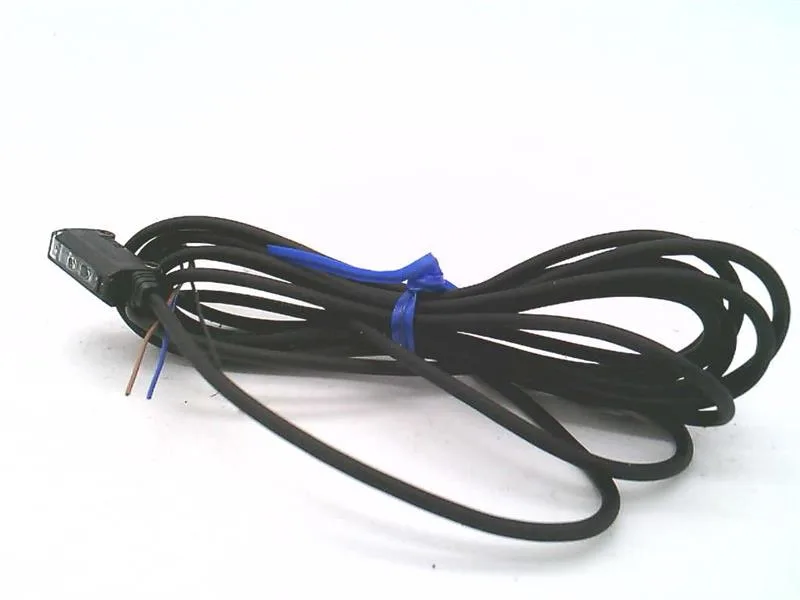

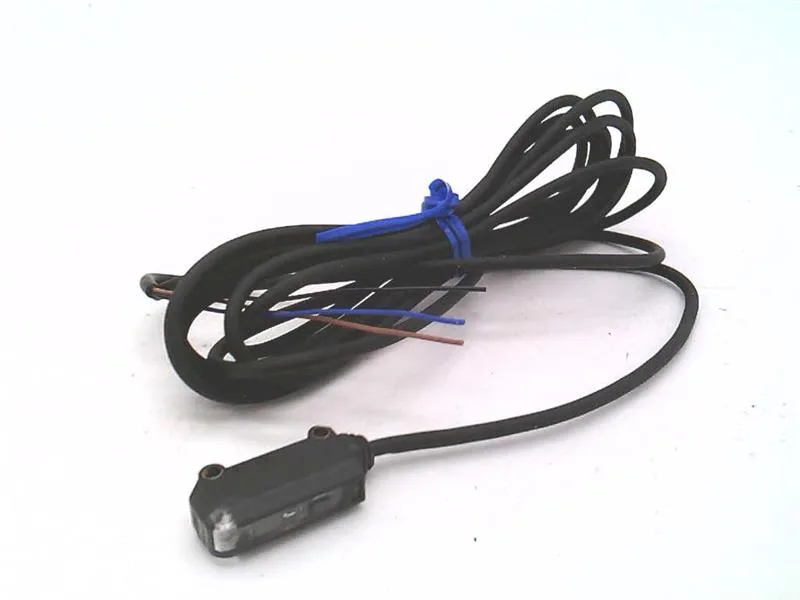

E3T-SL24 Miniature Photoelectric Sensor, PNP, 5-30 mm

MPNE3T-SL24

Omron E3T, miniature square photoelectric sensor, convergent-reflective, PNP output, 5-30 mm sensing distance (50×50 mm white paper), 1 ms response time, 12-24 VDC supply.

$121.00 – $208.71Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

E3T-SL24 — Sensing
ParameterValue
Sensing distance5 to 30 mm (50 x 50 mm white paper)
Response timeOperate or reset: 1 ms max.

Product details

The E3T-SL24 is a miniature square convergent-reflective photoelectric sensor with a PNP output — one of the tighter-focus parts in Omron's E3T line. It's sized for small spaces: a compact square body that fits where a big barrel sensor won't, and a pinpoint red LED (650 nm) that hits a 50×50 mm white target from 5 to 30 mm out. Response time is a crisp 1 ms, so it'll handle fast small-part detection on a pick-and-place or label feed. Power it with 12-24 VDC, draw about 20 mA, and you get reverse-polarity and short-circuit protection built in — saves a fuse when the wiring hunch fails.

If you're cross-shopping the E3T-SL14, the headline difference is sensing reach and hysteresis. The SL24 reaches farther — 5-30 mm versus the SL14's 5-15 mm — but trades a wider hysteresis band: 6 mm max on the SL24 versus 2 mm on the SL14. That means the SL24 gives you more working room but needs a cleaner contrast between object and background to avoid false triggers on a near-miss. Both are PNP, same power and protection, same body style. If your application has a tight repeatability window and only needs 15 mm, the SL14 is the tighter choice. If you need that extra 15 mm of reach, this part.

Frequently asked questions

What is the closest functional alternative?

The E3T-SL14 is the nearest second-source in the same family. It shares the same PNP output and body but has a shorter sensing distance (5-15 mm) and a tighter hysteresis (2 mm). Check whether your standoff range and repeatability requirements align.

What output type does this sensor have?

It's a PNP open-collector output rated for up to 26.4 VDC on the load side.

What is its weight?

0.02 kg — light enough that a handful carry no fatigue.

Can I drop the E3T-SL24 into a panel wired for the E3T-SL14?

Physically the same housing and pinout, same 12-24 VDC supply, same PNP output. However, the sensing distance and hysteresis differ — the SL24 triggers at a longer range with wider deadband. If the original SL14 was tuned for a specific gap and repeatability, check the target profile before swapping.

MPN
E3T-SL24
