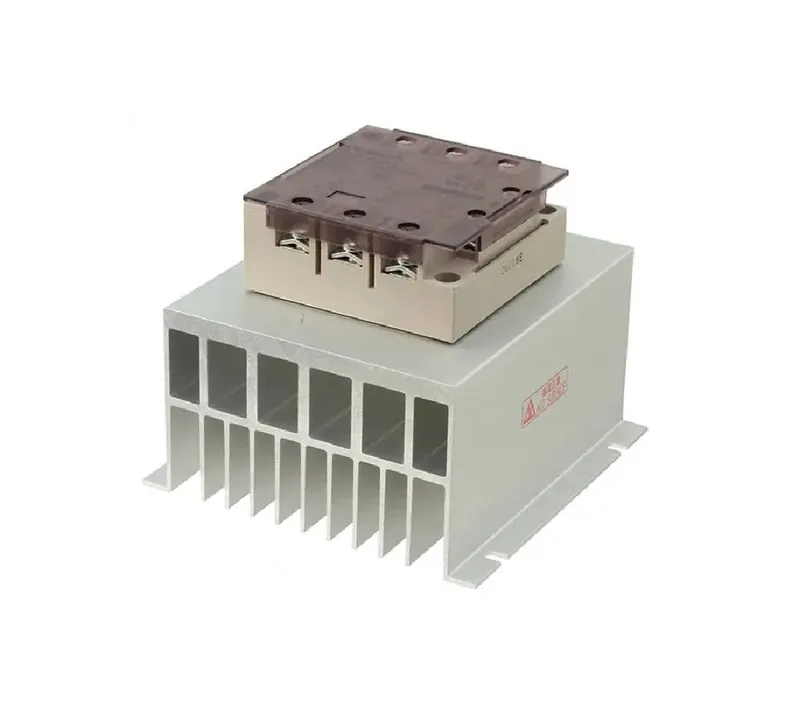

The Omron G3PE-535B-2 is a three-phase solid state contactor built specifically for heater loads — not a general-purpose motor contactor, but a zero-cross switching SSR designed to cycle resistive heating elements cleanly and quietly. It's rated to switch 35 A across 200 to 480 VAC three-phase, with a 12 to 24 VDC control input. The zero-cross function means it turns on and off at the AC voltage zero point, which cuts down on electrical noise and inrush current — important when you're switching heaters that draw high cold resistance. The phototriac coupler insulation provides 2,500 VAC dielectric strength between control and load circuits, so the PLC side stays isolated. Screw mounting keeps it simple: bolt it to a panel or backplate, land the power and control wires, and it's ready. The yellow operation indicator gives you a quick visual that the input coil is energized.
What the ratings mean in practice
The 35 A rating at 200 to 480 VAC is the load it can switch continuously in a heater application — three-phase resistive loads like oven elements, infrared heaters, or industrial drying tunnels. The 1.8 V RMS max output ON voltage drop means it doesn't waste much heat across the SSR itself, which helps keep the panel cool. Operate and release time are tied to the AC line — 1/2 cycle plus 1 ms max. That's fast enough for most temperature control loops, but not instant; if you need sub-cycle switching, this isn't the part. Leakage current is 20 mA max at 480 VAC — negligible for heater loads, but worth knowing if you're switching a very low-current load that could be falsely held on by leakage. Ambient operating temperature spans -30 to 80°C, which covers most industrial enclosures. Shock resistance of 294 m/s² (98 m/s² reverse-mounted) means it can handle vibration on a machine frame, though you'd want to use the screw mounting securely to avoid fatigue.
