Omron G7SA3A3BDC24BYOMZ
MPNG7SA3A3BDC24BYOMZ

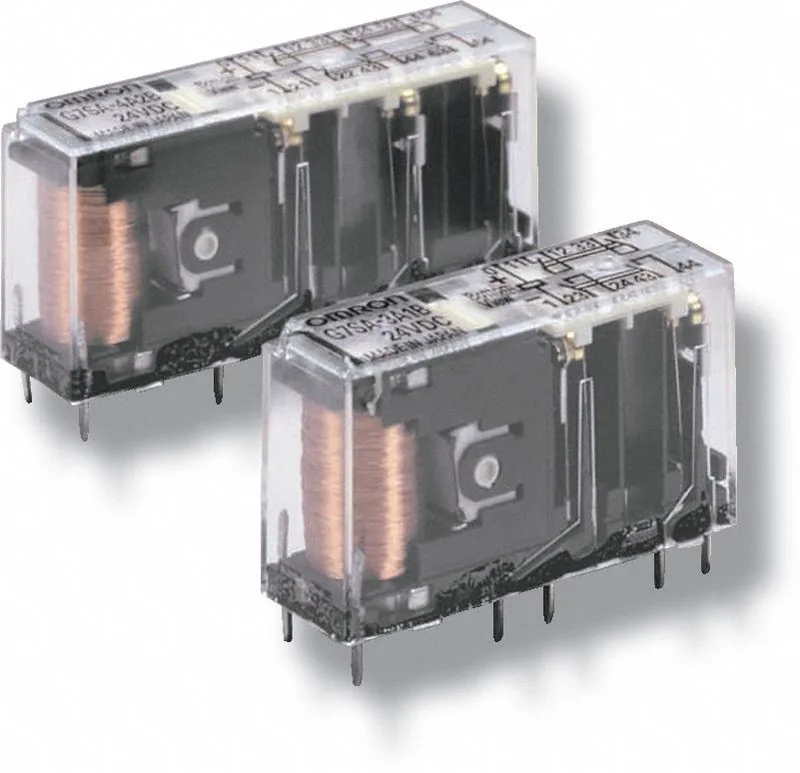

PCB Safety Relay G7SA, 3NO + 3NC, 24V, 1.15kOhm, 6A
$46.08 – $52.47Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Series | G7SA Series |
| Electrical connection type | Pin |
| Coil voltage | 24V DC |
| Current rating | 6 A |
| Maximum switching current | 6 A |
| Power consumption | 500 mW |
| Contact form | 3PST-NC; 3PST-NO |
| IP rating | IP40 |
| Relay mounting style | Socket |
| Number of pins (Terminals) | 14 |
| Response time | 10 msec |
| Maximum operating temperature | 185 °F |
All specifications+14 ▾
| Parameter | Value |
|---|---|
| Minimum operating temperature | -40 °F |
| Body depth (REWORK) | 0.94 in |
| Body width (REWORK) | 1.97 in |
| Body height (REWORK) | 0.51 in |
| Electrical operating durability | 100,000 |
| Mechanical operating durability | 10,000,000 |
| Standards | CSA Certified; EN; UL Listed |
| Brand | OMRON |
| Features | Additional Push-In Plus Terminal Sockets; EN/IEC 61810-3,Certified by VDE; Interlocking Circuit Compatibility; Machinery Directive; Reinforced Insulation Between Inputs and Outputs; Reinforced Insulation Between Some Poles of Different Polarity; Simplified PWB Pattern Design |
| Socket code | P |
| Coil resistance | 1,152 ohm |
| Contact rating | 6 A @ 250V |
| Resistance properties | Shock-Resistant; Vibration-Resistant |
| Compatible with manufacturer model number | P7SA-F-ND |
MPN
G7SA3A3BDC24BYOMZ
