Omron K8AC-H23PN-FLK

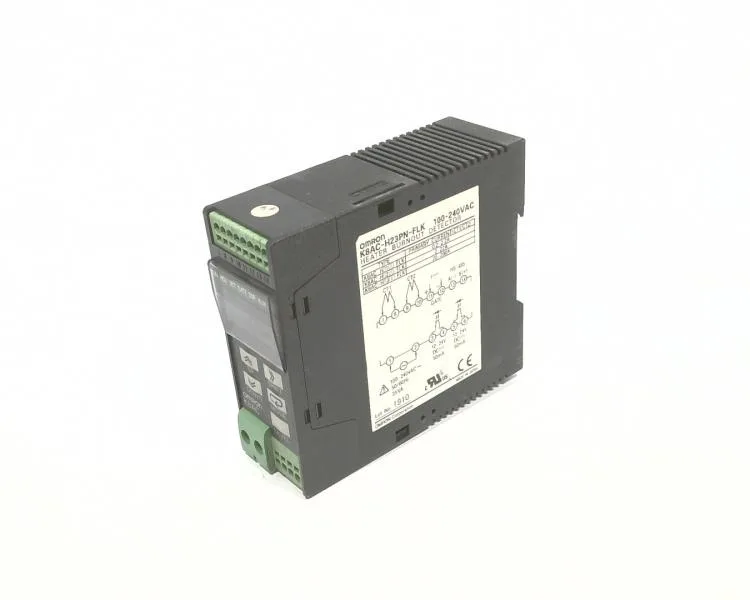

Omron K8AC-H23PN-FLK Heater Element Detector, 20~200A

MPN K8AC-H23PN-FLK
Active

Omron K8AC-H23PN-FLK, Type Heater Element Detector, Series K8AC-H, Input Range 20~200A, Output Type Solid State (2), Display LED Red Characters, Communications RS-485 (CompoWay/F), Mounting DIN Rail, Termination Spring Terminal, Voltage Supply 85~264VAC.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

K8AC-H23PN-FLK specifications
ParameterValue
SeriesK8AC-H
Output signalSolid State (2)
Display typeLED - Red Characters
Product typeHeater Element Detector
Supply voltage85 to 264VAC
ProtocolRS-485 (CompoWay/F)
MountingDIN Rail
Temp operating max55 °C
Temp operating min-10 °C
Weight0.441 lb (200.03 g)
PackageBulk

Product details

What this detector does that a temperature controller cannot

The K8AC-H23PN-FLK is a dedicated heater element detector, not a general-purpose temperature controller. It monitors current through a heater load via an external current transformer (CT) in the 20~200A range and flags a fault when the current drops below a set threshold — meaning an open heater element, a failed SSR shorted open, or a blown fuse. A temperature controller reading a thermocouple will not catch a dead heater until the process drifts; this unit catches it on the next half-cycle. Two solid-state outputs give you separate alarm and normal-status signals — one can trigger a PLC input, the other a panel beacon. The 4-digit red LED display shows the measured current in real time, so a walk-by glance confirms all heaters are drawing load.

Panel wiring and integration constraints

Mounts on standard DIN rail. The spring terminals accept solid or ferruled stranded wire without needing a screwdriver torque check — faster termination in a panel build. Supply range 85~264VAC means it runs on any common plant voltage from 110 V to 240 V without a transformer tap change. RS-485 communication using Omron's CompoWay/F protocol lets a PLC or SCADA poll the measured current and fault status over a multi-drop bus. If you are integrating into a Modbus network, note the protocol mismatch — CompoWay/F is not Modbus RTU, so a protocol converter or gateway is needed at the master side. Operating temperature range -10°C to 55°C covers most indoor electrical enclosures; if the panel sits near a furnace or in a non-conditioned space above 55°C, derate or relocate the unit.
