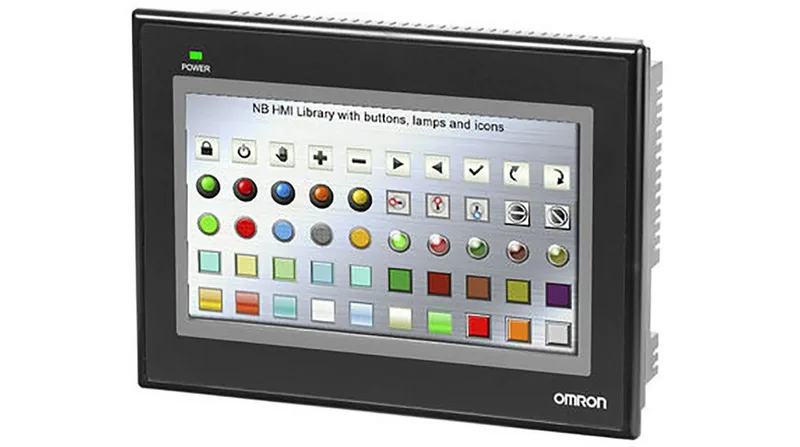

The Omron NB7WTW01B.1 is a 7-inch LCD-TFT HMI from the NB Series, with 800x480 resolution, a resistive touchscreen, and a black bezel. The IP65-rated front panel suits panels that see washdown or dusty conditions. It runs on 20.4 to 27.6 VDC and draws 11 W – a modest 7-inch power budget for a packed enclosure. Communication side: RS232/422/485, a 10/100 Ethernet port for Modbus TCP or other protocols, plus USB Device for PC uploads and USB Host for data logging to a stick. That covers most panel integrations without an add-on gateway.
Mounting and Wiring Notes
Panel cut-out follows the standard 7-inch HMI footprint – measure the gasket groove for the IP65 seal. No additional gland plate needed if you route cables through the rear opening.
Lifecycle and Sourcing
It is quoted to order against an RFQ; lead time and quantity are confirmed per inquiry. No pin-compatible direct alternative is documented in the NB Series list – specify this exact code for BOM freeze.
