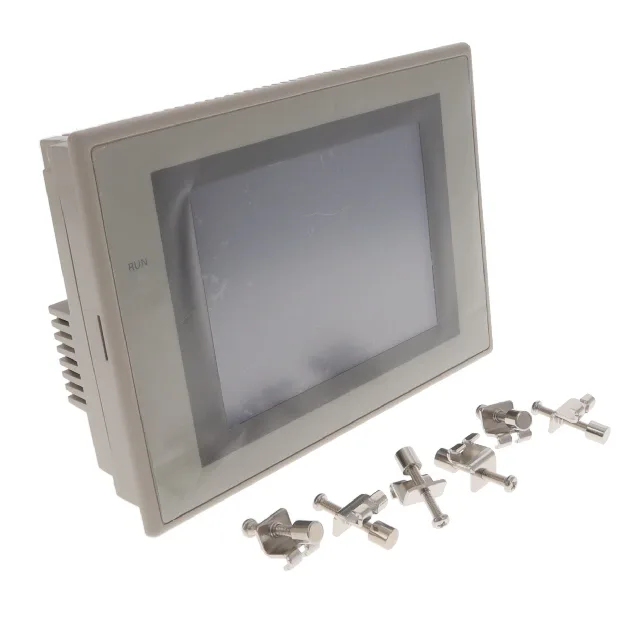

Omron NS5-SQ10-V2 HMI Touchscreen 5.7" Color, 24VDC, IP65
Omron NS5-SQ10-V2, NS Series, Touchscreen HMI, 5.7" Color display, 24VDC, IP65/NEMA 4, Ivory case, Memory Card Interface, Bulk.
Specifications
| Parameter | Value |
|---|---|
| Series | NS |
| For use with / related products | Multiple Manufacturer, Multiple Product |
| Parameter | Value |
|---|---|
| Display type | Color |
| Display technology | Touchscreen |
| Parameter | Value |
|---|---|
| Supply voltage | 24VDC |
| Parameter | Value |
|---|---|
| Ingress protection (IP / NEMA) | IP65 - Dust Tight, Water Resistant; NEMA 4 |
| Operating temperature | 0°C ~ 50°C |
| Parameter | Value |
|---|---|
| Features | Memory Card Interface |
| Case color | Ivory |
| Size - display | 5.7" |
Product details
Frequently asked questions
What is the NS5-SQ10-V2's display size and type?
It is a 5.7" color touchscreen HMI. The display is color, not monochrome, and the touch interface replaces hard keys for screen navigation.
5.7" color touchscreen with IP65 front — the panel fit
The Omron NS5-SQ10-V2 is a 5.7" color touchscreen HMI from the NS Series, running on 24VDC supply. The front panel carries an IP65 and NEMA 4 rating — dust-tight and protected against hose-directed water, so it mounts directly into a panel cut-out in washdown zones or outdoor cabinets without a secondary cover.
Obsolete — sourcing through independent channels
Omron has marked the NS5-SQ10-V2 as Obsolete. The unit is sourced through independent distribution — quantities are lot-specific and confirmed at RFQ against the BOM line. The Memory Card Interface supports recipe transfer and program backup via CompactFlash or similar media — useful for cloning a replacement unit to match the existing application without re-entering screens from scratch.
Operating envelope and panel integration
Rated for 0°C to 50°C ambient — the enclosure must stay within that range; the HMI generates its own heat, so the panel interior temperature, not the plant floor ambient, is the governing figure. The ivory case color is the standard NS Series panel-facing finish. Bulk packaging means the unit ships without a retail box — the anti-static bag and foam wrap are adequate for panel-shop handling but the packing slip should be checked against the PO on receipt.
