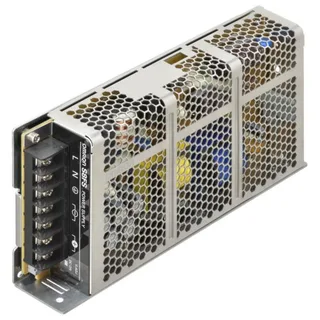

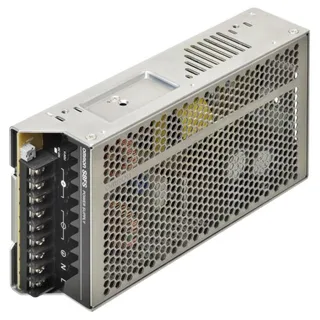

Omron S8FSC Series

17 variants · OmronAll DIN Rail Power Supplies →

About the Omron S8FSC Series

The Omron S8FSC Series series groups 17 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common insulation voltage ui of 3 kV and output signal of Adjustable. Variants differ by depth, efficiency and height, so you can match the exact depth your application requires using the selection guide below.

Select a variant by

Depth: 38 mm · 50 mm · 111 mm · 141 mm · 171 mm · 211 mm · 224 mm
Efficiency: 75% · 85% · 86% · 87% · 88%
Height: 97 mm · 112.5 mm · 129 mm · 199 mm · 212 mm
Power: 35 W · 50 W · 75 W · 100 W · 150 W · 200 W · 350 W
Ripple noise: 80 mV · 100 mV · 110 mV · 120 mV
Width: 36 mm · 38 mm · 50 mm · 97 mm · 112.5 mm

Shared specifications

Insulation voltage ui: 3 kV
Output signal: Adjustable

Variant comparison

Parameter	S8FSC07505J	S8FSC15024J	S8FSC35024	S8FSC35024J	S8FSC20024	S8FSC20024J
Depth	171 mm	211 mm	50 mm	224 mm	50 mm	224 mm
Efficiency	75%	86%	86%	86%	88%	88%
Height	97 mm	97 mm	212 mm	112.5 mm	212 mm	112.5 mm
Power	75 W	150 W	350 W	350 W	200 W	200 W
Ripple noise	80 mV	100 mV	120 mV	120 mV	110 mV	110 mV
Width	38 mm	38 mm	112.5 mm	50 mm	112.5 mm	50 mm

Request a quote on any Omron S8FSC Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
