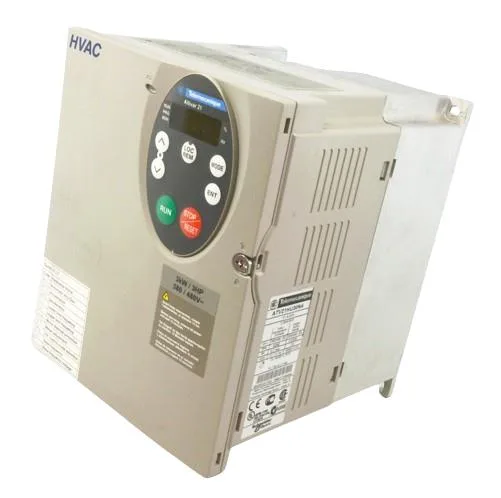

Schneider Electric ATV21HU30N4
MPNATV21HU30N4
Obsolete
variable speed drive - ATV21 - 3kW NAHP - 480V - EMC filter class A - IP20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Variable speed drive |
| Product range / family | Altivar 21 |
| Parameter | Value |
|---|---|
| Motor power (kW) | 3 kW |
| Max. transient current | 7.9 A 60 s |
| Apparent power | 5.5 kVA 380 V |
| Parameter | Value |
|---|---|
| Input line current | 4.9 A 480 V 6.2 A 380 V |
| Parameter | Value |
|---|---|
| Output frequency range | 0.5...200 Hz |
| Asynchronous motor control modes | Energy saving ratio Constant voltage/frequency ratio Quadratic voltage/frequency ratio Constant voltage/frequency ratio with automatic IR compensation Current flux vector control (FVC) without speed feedback |
| Parameter | Value |
|---|---|
| Integrated EMC filter class | Class A EMC filter integrated |
| EMC immunity tests | 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 |
| Parameter | Value |
|---|---|
| IP degree of protection | IP20 on upper part without blanking plate on cover EN/IEC 60529 IP20 on upper part without blanking plate on cover EN/IEC 61800-5-1 IP21 EN/IEC 60529 IP21 EN/IEC 61800-5-1 IP41 on upper part EN/IEC 60529 IP41 on upper part EN/IEC 61800-5-1 |
| Acoustic noise level | 51 dB 86/188/EEC |
| Assembly / installation style | With heat sink |
| Parameter | Value |
|---|---|
| Operating ambient temperature | 14...104 °F (-10...40 °C) (without derating) 104...122 °F (40...50 °C) (with derating factor) |
| Operating altitude | 3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network |
| Relative humidity | 5...95 % without condensation IEC 60068-2-3 5...95 % without dripping water IEC 60068-2-3 |
| Storage / transport temperature | -13...158 °F (-25...70 °C) |
| Pollution degree | 3 IEC 61800-5-1 |
| Vibration resistance | 1 gn (f= 13...200 Hz) conforming to EN/IEC 60068-2-8 1.5 mm (f= 3...13 Hz) conforming to EN/IEC 60068-2-6 |
| Parameter | Value |
|---|---|
| Certifications & marking | CE |
| Standards compliance | IEC 61800-3 environments 2 category C2 EN 61800-3 environments 1 category C2 IEC 61800-3 category C3 IEC 61800-3 EN 61800-3 environments 2 category C3 EN 61800-3 category C3 EN 55011 class A group 1 EN 61800-3 environments 2 category C2 IEC 61800-3 environments 1 category C3 IEC 61800-3 environments 2 category C1 EN 61800-5-1 EN 61800-3 IEC 61800-3 environments 1 category C1 IEC 61800-3 environments 1 category C2 IEC 61800-5-1 EN 61800-3 environments 2 category C1 UL Type 1 EN 61800-3 environments 1 category C1 IEC 61800-3 environments 2 category C3 EN 61800-3 category C2 EN 61800-3 environments 1 category C3 IEC 61800-3 category C2 |
| Parameter | Value |
|---|---|
| Communication protocols | Modbus |
MPN
ATV21HU30N4
