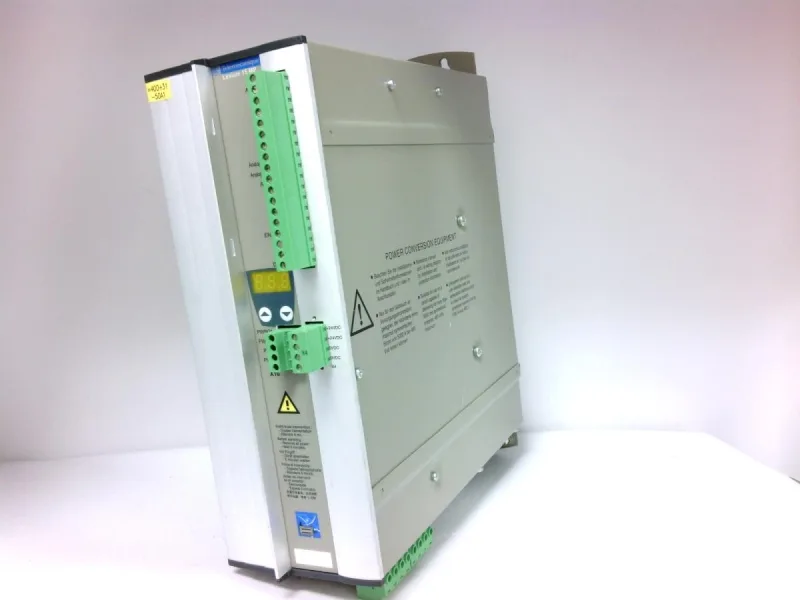

Schneider LXM15HC11N4X Servo Drive
MPNLXM15HC11N4X
Obsolete
LXM15HC11N4X by TELEMECANIQUE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product range | Lexium 15 |
| Product type | Motion servo drive |
| Parameter | Value |
|---|---|
| EMC filter | Without EMC filter |
| Line current | 35 A at 208 V three phase 36.6 A at 480 V three phase |
| Nominal power | 22.3 kW three phase |
| Apparent power | 30 kVA |
| Component name | LXM15H |
| Output voltage | 1000...2000 m with derating of the motor output current by 1.5 % per additional 100 m |
| Earthing system | Compatible TT Compatible IT with additional isolation transformer on the power supply Compatible TN |
| Peak output current | 112 A three phase |
| Switching frequency | 8 kHz |
| Power supply voltage | 208...480 V - 10...10 % |
| Power supply frequency | 50/60 Hz - 5...5 % |
| Network number of phases | Three phase |
| Continuous output current | 40 A three phase |
| Power supply voltage limits | 187.2...528 V |
| Transient RMS output current | 80 A for 5 s three phase |
| Power supply frequency limits | 47.5...63 Hz |
MPN
LXM15HC11N4X
