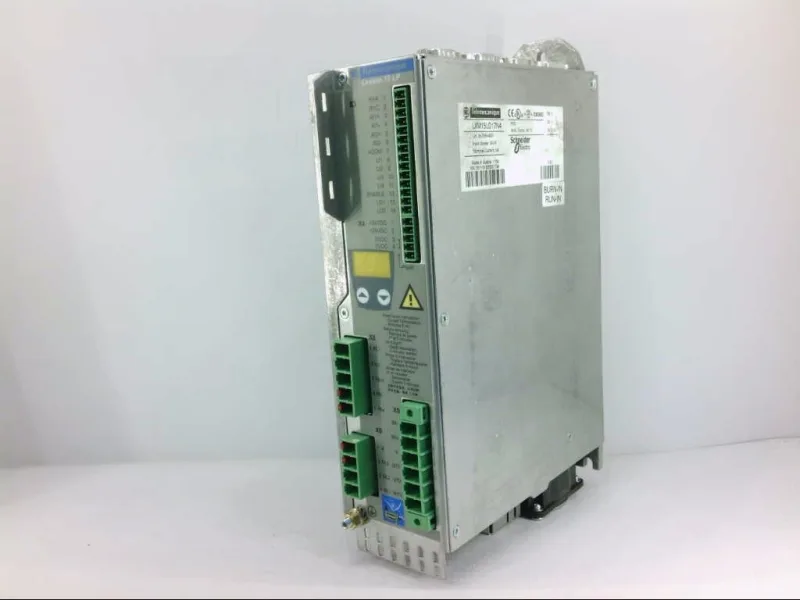

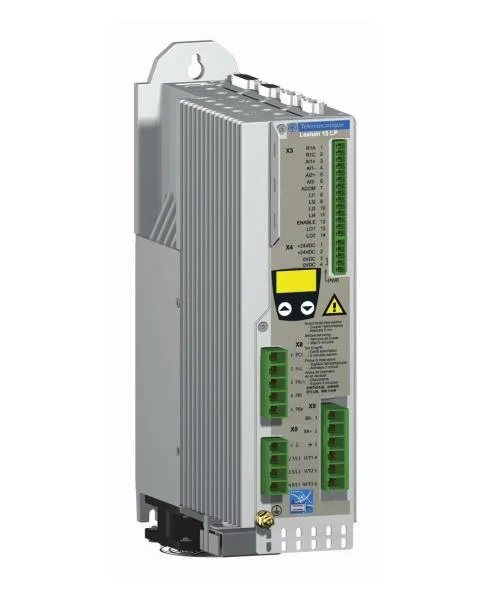

Schneider LXM15LD17N4 Servo Drive
MPNLXM15LD17N4
Obsolete
LXM15LD17N4 - MOTION SERVO DRIVE by TELEMECANIQUE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product range | Lexium 15 |
| Product type | Motion servo drive |
| Parameter | Value |
|---|---|
| EMC filter | Integrated |
| Line current | 6.9 A at 208 V three phase 8.2 A at 480 V three phase |
| Nominal power | 4.3 kW three phase |
| Apparent power | 5 kVA |
| Component name | LXM15L |
| Output voltage | 1000...2000 m with derating of the motor output current by 1.5 % per additional 100 m |
| Earthing system | Compatible IT with additional isolation transformer on the power supply Compatible TT Compatible TN |
| Peak output current | 17 A three phase |
| Switching frequency | 8 kHz |
| Power supply voltage | 208...480 V - 10...10 % |
| Power supply frequency | 50/60 Hz - 5...5 % |
| Network number of phases | Three phase |
| Continuous output current | 6 A three phase |
| Power supply voltage limits | 187.2...528 V |
| Transient RMS output current | 12 A for 2 s three phase |
| Power supply frequency limits | 47.5...63 Hz |
MPN
LXM15LD17N4
