Schneider Electric BMEAHI0812

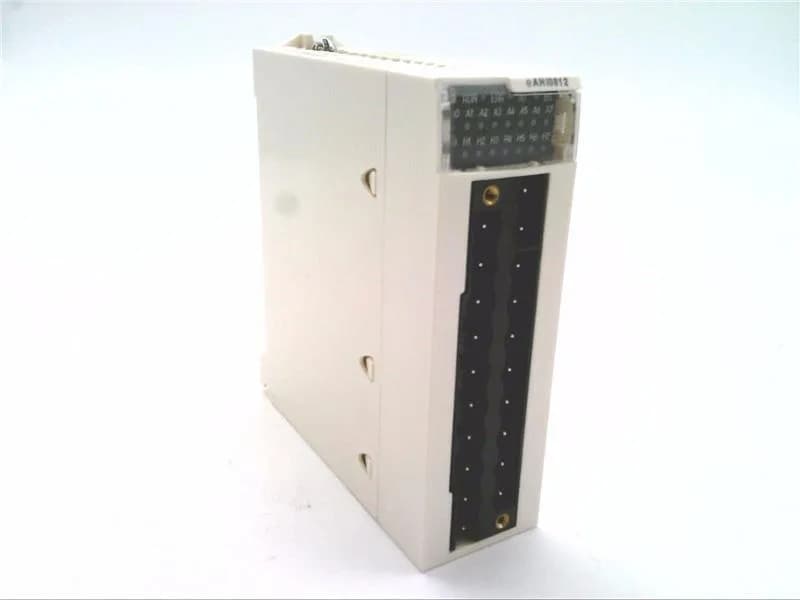

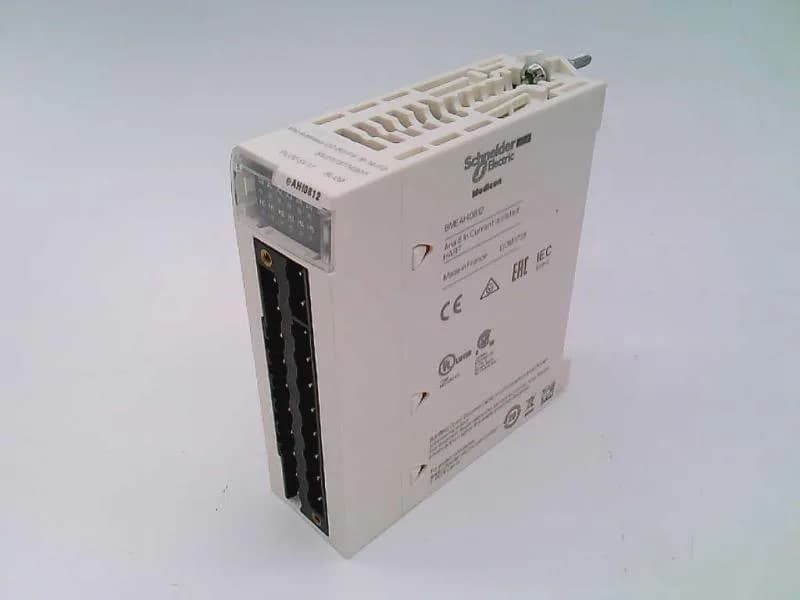

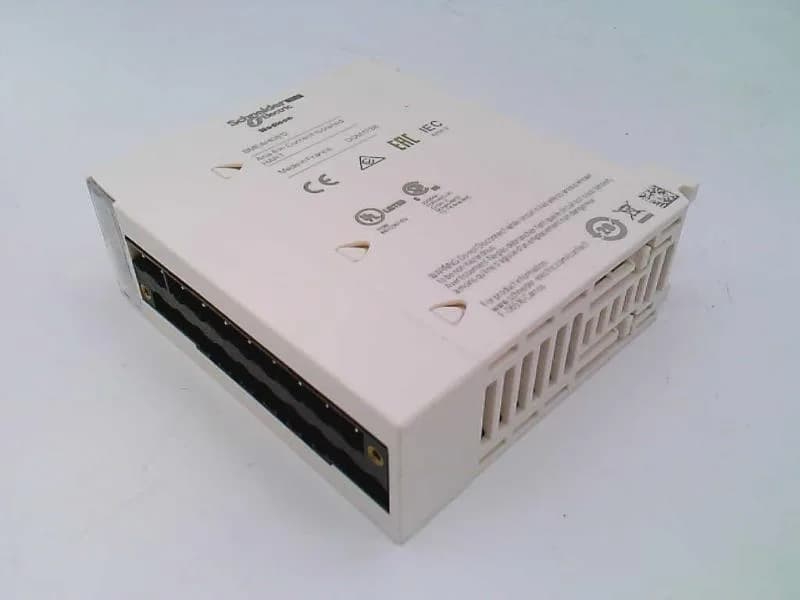

BMEAHI0812 Modicon X80 8-Ch HART AI Module

MPNBMEAHI0812
Active

Schneider Electric Modicon X80 analog input module, 8 channels HART, 4-20 mA, isolated channels, 15-bit + sign resolution, BMEAHI0812.

$615.95Ref. price · indicative, final on quote
Schneider Electric BMEAHI0812 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMEAHI0812 key specifications
ParameterValue
Range of productModicon X80
Analogue input typeCurrent 4...20 mA
Product or component typeAnalog input module
Isolation voltage1000 V DC for 60 s between channels 1400 V DC for 60 s between channels and ground 1400 V DC for 60 s between channels and bus
IP degree of protectionIP20
Electrical connection20 ways terminal block Telefast
Product weight0.233 kg
StandardsIEC 61010-2-201 IEC 61131-2 UL 61010-2-201 CSA C22.2 No 61010-2-201
ChecksBroken wire detection
TopologyPoint-to-point
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Input impedance250 Ohm internally protective resistor (3.6 to 50 Ohm)

All specifications

BMEAHI0812 additional specifications
ParameterValue
Measurement error0.15 % of full scale 25 °C <= 0.3 % of full scale 0...60 °C
Temperature drift50 ppm/°C
Function availableI/O mapping
Protective treatmentStandard version
Analogue input number8
Application specific i (O)HART
Analogue input resolution15 bits + sign
Isolation between channelsIsolated
Ambient air temperature for operation0...60 °C

Product details

What it does out here on the floor

The BMEAHI0812 is an 8-channel HART analog input module for the Modicon X80 rack, accepting 4-20 mA current loops with 15-bit plus sign resolution. Its active in Schneider's current catalog, so you're ordering through normal distribution—no last-time-buy scramble.

What each channel brings

Each input is isolated: 1000 V DC between channels, 1400 V DC to ground and bus. Input impedance is 250 Ω with protective resistor.

HART and broken wire detection

The module is HART-capable—it handles the digital communication layer on top of the 4-20 mA analog signal. You can talk to smart transmitters from the CPU without extra wiring. And it watches for broken wire: if the loop opens, the module flags it immediately. That's a real timesaver when you're walking a route and a transmitter goes silent.

Compliance and wiring

The module carries IEC 61010-2-201, IEC 61131-2, UL 61010-2-201, and CSA C22.2 No 61010-2-201 marks—standard stuff for a panel going into a UL 508A build. The 20-way Telefast connector makes field wiring a plug-in affair; keep the panel wiring clean and you'll pass inspection.

Sourcing today

This is an active catalogue item. Directives: 2014/35/EU, 2014/30/EU.

Frequently asked questions

What is BMEAHI0812's listed topology (Point-to-point) on this component line?

The module uses a point-to-point topology, meaning each input channel is individually wired to the field device.

What compliance documentation does this brand provide for BMEAHI0812 (RoHS, REACH, UL, IEC)?

The module complies with IEC 61010-2-201, IEC 61131-2, UL 61010-2-201, and CSA C22.2 No 61010-2-201. It also meets EU Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU. RoHS/REACH declarations are available from Schneider's documentation portal.
