Schneider Electric BMENUA0100

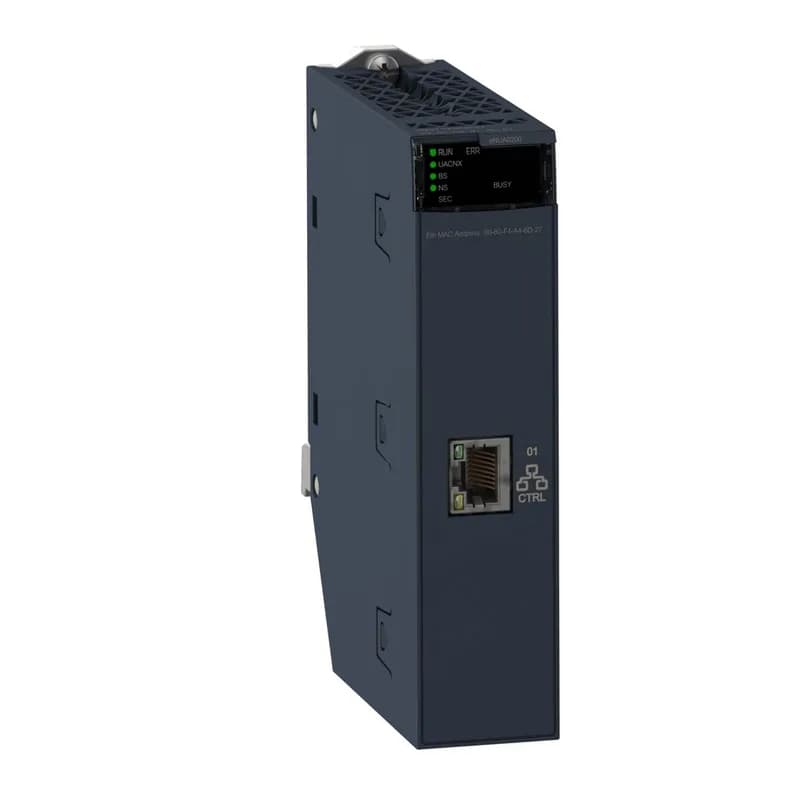

Schneider BMENUA0100 Modicon M580 OPC UA server module

MPNBMENUA0100
Active

Schneider BMENUA0100 Network Devices.

$697.23 – $1,570.00Ref. price · indicative, final on quote
Schneider Electric BMENUA0100 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMENUA0100 key specifications
ParameterValue
Range of productModicon M580
Product or component typeCommunication module
Integrated connection type1 Ethernet port RJ45 10/100/1000 Mbit/s double shielded twisted pair
Current consumption<= 140 mA 24 V DC
IP degree of protectionIP20
Communication serviceModbus TCP server for module diagnostics Network management SNMP agent V1 and V3 Time synchronization NTP V4 - Client and Server
Mounting locationMain rack
Shock resistance30 gn
Relative humidity5...95 % 131 °F (55 °C) without condensation
Operating altitude0...6561.68 ft (0...2000 m) 2000 m...5000 m with derating factor
Vibration resistance3 gn
Width1.3 in (32 mm)

All specifications

BMENUA0100 additional specifications
ParameterValue
Height5.2 in (131 mm)
StandardsIEC 61131-2 IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 & type 2 EN/IEC 61850-3, location G
Length3.39 in (86.05 mm)
OPC UAOPC UA server 10 clients connection max 50000 monitored item max in standard sampling mode 2000 monitored item max in fast sampling mode 40 maximum subscriptions per session 250 ms, minimum publishing interval in standard sampling mode 20 ms, minimum sampling interval in fast sampling mode 20 ms, minimum publishing interval in fast sampling mode 125 ms, sampling interval in standard sampling mode 100000, maximum number of nodes Hot redundancy mode
SupplyInternal power supply via rack
MarkingCE
NetworkIPV6 IP forwarding (Front port and backplane) Service forwarding Network segmentation
CategoryUS1PC3418160
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Web serverFor commissioning, operational and maintenance
CybersecuritySecure communication (HTTPS) Built-in firewall Certificate based authentication System hardening Role-based access control Syslog protocol support IPSec (initiator and responder role) Network physical isolation Achilles level 2 tested
Exchange modeHalf duplex and full duplex
Local signalling1 LED (green) for processor running (RUN) 1 LED (red) for processor or system fault (ERR) 1 LED (green/red) for ETH MS (Ethernet port configuration status) 1 LED (green/red) for Eth NS (Ethernet network status) 1 LED (green/red) for status (STS) 1 LED (yellow) for communication data bus
Device applicationOPC UA server & IT control network
Function availableCCOTF (configuration change on the fly) Hot swappable module Advanced diagnostic information (DDT, web pages, OPC UA objects) SCADA connection through Modbus TCP
Source timestampingOnly digital IOs or variables 250 ms, minimum polling of buffer 5000 ms, maximum polling of buffer
Protective treatmentStandard version
Backplane slot locationEthernet + X-bus Slot
Slot occupied by module1
Transmission support mediumEthernet backplane
Environmental characteristicHazardous location class I division 2
Maximum number of modules per rack2
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Ambient air temperature for operation32...140 °F (0...60 °C)

Product details

Overview

The BMENUA0100 is a Modicon M580 OPC UA server module that bridges the control network to IT systems, supporting up to 10 OPC UA clients and 50000 monitored items in standard sampling mode. It mounts in a single Ethernet + X-bus slot on the M580 backplane, draws power internally via the rack, and provides a 10/100/1000 BASE-TX Ethernet port with IPv6 forwarding and network segmentation. Cybersecurity features include a built-in firewall, HTTPS, IPSec, role-based access control, and Achilles level 2 certification.

Selection and integration

Compared to the BMXNGD0100, which is a Modicon X80 global data module with Modbus TCP messaging and a 0.09 A switching current, the BMENUA0100 is purpose-built for OPC UA server duties with a 0.14 A switching current and a richer protocol set including SNMP and NTP. The BMENUA0100 is compatible with M580 standalone, redundant, and safety CPUs, as well as X80 Ethernet backplane racks, making it a drop-in for existing M580 architectures.

The BMENUA0100 is an active catalog item in the Modicon M580 range; lead time is confirmed via RFQ for the exact build code.
